graphite RODS
| Place of Origin | China |
|---|---|
| Brand Name | Haisen |
| Certification | haisen carbon |
| Model Number | Haisen carbon |
| Price | USD1700/MT |
| Packaging Details | pallets |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 100MT/weeks |
Product Details
Product Description
The products:

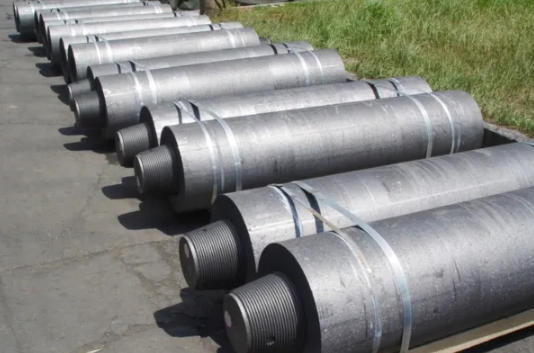

1-graphite electrode:
Dia75mm,100mm,150mm,200mm,225mm,250mm,300mm,350mm,400mm,450mm,500mm,600mm.
Grade:RP,HP,SHP and UHP.
Length: 1500~2400mm
2-Graphite powder: 0-0.075mm,0.5-1,1-5mm,1-6mm,40-300mesh and etc.
3-Refractories:
refractory brick is used the furnace of steel plant.
graphite RODS
Technial Specification for Graphite Electrode
|
ITEM |
UNIT |
RP ≤Φ400 ≥Φ450 |
HP ≤Φ400 ≥Φ450 |
SHP ≤Φ400 ≥Φ450 |
UHP ≤Φ400≥Φ450 |
|
Resistivity≤ Electrode Nipple |
µΩm |
8.5 8.8 5.8 |
6.2 6.5 4.5 |
6.0 6.0 4.5 |
5.5 5.8 4.0 |
|
Bending Electrode Strengths ≥ Nipple |
Mpa |
8.5 8.0 18 |
11.5 11 22 |
10.5 10.5 20 |
12 24 |
|
Elastic Electrode Modulus ≤ Nipple |
Gpa |
9.3 14 |
12 16 |
14 18 |
14 18 |
|
Ash ≤ Electrode Nipple |
% |
0.5 |
0.3 |
0.3 |
0.3 |
|
Bulk Electrode density ≥ Nipple |
g/ cm3 |
1.54 1.7 |
1.67 1.75 |
1.67 1.77 |
1.68 1.77 |
|
C.T.E ≤ Electrode (100-600°c) Nipple |
10-6 /°c |
2.5 2.2 |
1.8 1.5 |
2.2 1.6 |
1.3 1.2 |
1.Graphite Electrode is made of high quality calcined petroleum coke, imported needle coke, and modified coal asphalt, the trade are RP,HD(impregnation) HP and UHP graphite electrode, the specification is dia 150-600mm.
2.Graphite Electrode produced by our company has the advantage of low resistivity, high electrical conductivity and thermal conductivity, good oxidation resistance, good thermal shock resistance, high mechanical strength, each to machine etc.
3.Graphite Electride is widely used to smelt the steel, alloy steel and other metal or nonmetal material in electric arc furnace.
Graphite Electrode Production Process
