Hot Sale Carbon Electrode Graphite with Nipple
| Place of Origin | China |
|---|---|
| Brand Name | Haisen |
| Certification | haisen carbon |
| Model Number | Haisen carbon |
| Price | USD1700/MT |
| Packaging Details | pallets |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 100MT/weeks |
Product Details
Product Description
Hot Sale Carbon Electrode Graphite with Nipples
Carbon Graphite Electrodes are made from high quality domestic calcined petroleum coke and high quality imported needle petroleum coke.
Specification:
Product:Carbon Electrode Graphite With Nipple
Grade:RP/HP/UHP
Diameter:50-600mm
Length:1500-2400mm
Nipple:3TPI 4TPI 4TPIL
Other sizes can be provided upon customer's requirement
Technical Parameters/ Specifications:
|
Physical Properties |
RP Grade (Dia.100-600mm) |
HP Grade (Dia.150-500mm) |
UHP Grade (Dia.200-450mm) |
|
|
Specific Resistance (max) μΩ-m |
Electrode |
8.0 |
7.0 |
6.5 |
|
Nipple |
6.5 |
5.5 |
5.0 |
|
|
Bending Strength (min) Mpa |
Electrode |
11.0 |
12.0 |
12.0 |
|
Nipple |
14.0 |
14.0 |
16.0 |
|
|
Elastic Modulus (max) Gpa |
Electrode |
9.0 |
12.0 |
12.0 |
|
Nipple |
12.0 |
14.0 |
14.0 |
|
|
Bulk Density (min) g/cm3 |
Electrode |
1.56-1.60 |
1.65-1.70 |
1.66-1.72 |
|
Nipple |
1.70-1.72 |
1.72-1.74 |
1.73-1.76 |
|
|
C.T.E (max) ×10-6/C |
Electrode |
2.7 |
2.5 |
2.4 |
|
Nipple |
2.5 |
2.2 |
2.0 |
|
|
Ash (max) % |
Electrode |
0.30 |
0.30 |
0.20 |
|
Nipple |
||||
Size and Tolerance:
|
Diameter |
Length |
|||||
|
Nominal diameter |
Actual diameter |
Nominal length |
Tolerance |
|||
|
mm |
inch |
Maximum |
Minimum |
mm |
Length (mm) |
Short length (mm) |
|
150 |
6 |
154 |
149 |
1600 1800 |
+/-100 |
-275 |
|
200 |
8 |
205 |
200 |
|||
|
225 |
9 |
230 |
225 |
|||
|
250 |
10 |
256 |
251 |
(1600) 1800 |
||
|
300 |
12 |
307 |
302 |
|||
|
350 |
14 |
357 |
352 |
|||
|
400 |
16 |
409 |
403 |
(1600) 1800 |
||
|
450 |
18 |
460 |
454 |
|||
|
500 |
20 |
511 |
505 |
|||
Application:
Carbon Graphite Electrodes are used for steel making, metallurgy, casting, foundry, silicon metal, etc
Programmable properties:
1.Low electrical resistance
2. High bulk density
3. Low ash content
4. High mechanical strength
5. High oxidation resistance for abrupt change of temperature and high-yield in melting process
6. High anti-oxidation

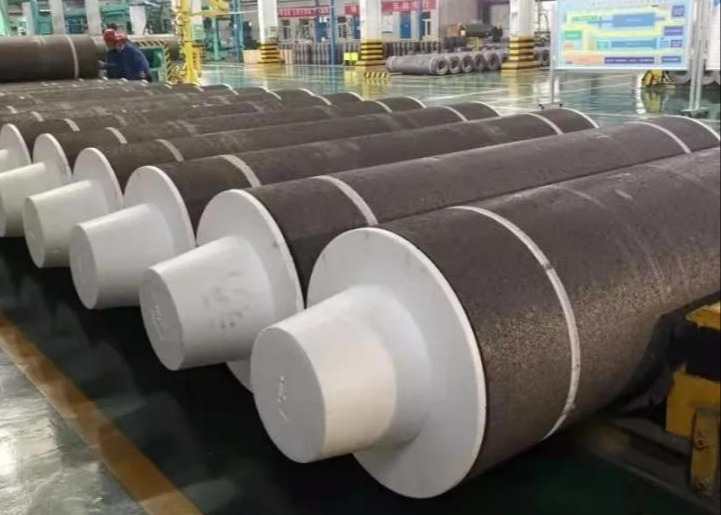

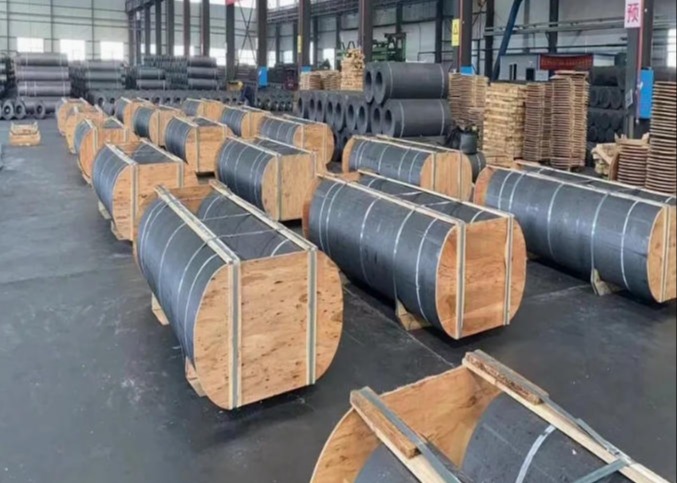

Photos For Carbon Electrode Graphite With Nipples:
