Hot Sale Carbon Electrode Graphite with Nipples
Carbon Graphite Electrodes are made from high quality domestic calcined petroleum coke and high quality imported needle petroleum coke.
Specification:
Product:Carbon Electrode Graphite With Nipple
Grade:RP/HP/UHP
Diameter:50-600mm
Length:1500-2400mm
Nipple:3TPI 4TPI 4TPIL
Other sizes can be provided upon customer's requirement
Technical Parameters/ Specifications:
| Physical Properties |
RP Grade (Dia.100-600mm) |
HP Grade (Dia.150-500mm) |
UHP Grade (Dia.200-450mm) |
|
|
Specific Resistance (max) μΩ-m |
Electrode | 8.0 | 7.0 | 6.5 |
| Nipple | 6.5 | 5.5 | 5.0 | |
|
Bending Strength (min) Mpa |
Electrode | 11.0 | 12.0 | 12.0 |
| Nipple | 14.0 | 14.0 | 16.0 | |
|
Elastic Modulus (max) Gpa |
Electrode | 9.0 | 12.0 | 12.0 |
| Nipple | 12.0 | 14.0 | 14.0 | |
|
Bulk Density (min) g/cm3 |
Electrode | 1.56-1.60 | 1.65-1.70 | 1.66-1.72 |
| Nipple | 1.70-1.72 | 1.72-1.74 | 1.73-1.76 | |
|
C.T.E (max) ×10-6/C |
Electrode | 2.7 | 2.5 | 2.4 |
| Nipple | 2.5 | 2.2 | 2.0 | |
|
Ash (max) % |
Electrode | 0.30 | 0.30 | 0.20 |
| Nipple | ||||
Size and Tolerance:
| Diameter | Length | |||||
| Nominal diameter | Actual diameter | Nominal length | Tolerance | |||
| mm | inch | Maximum | Minimum | mm | Length (mm) | Short length (mm) |
| 150 | 6 | 154 | 149 |
1600 1800 |
+/-100 |
-275 |
| 200 | 8 | 205 | 200 | |||
| 225 | 9 | 230 | 225 | |||
| 250 | 10 | 256 | 251 |
(1600) 1800 |
||
| 300 | 12 | 307 | 302 | |||
| 350 | 14 | 357 | 352 | |||
| 400 | 16 | 409 | 403 | (1600) 1800 2000 2200 2400 |
||
| 450 | 18 | 460 | 454 | |||
| 500 | 20 | 511 | 505 | |||
Application:
Carbon Graphite Electrodes are used for steel making, metallurgy, casting, foundry, silicon metal, etc
Programmable properties:
1.Low electrical resistance
2. High bulk density
3. Low ash content
4. High mechanical strength
5. High oxidation resistance for abrupt change of temperature and high-yield in melting process
6. High anti-oxidation

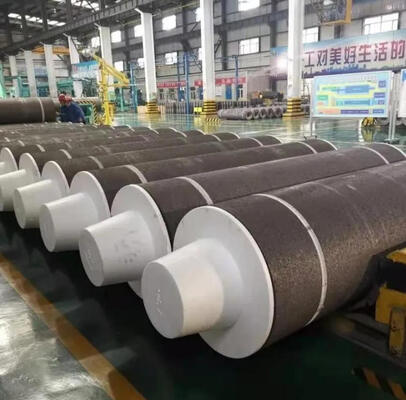

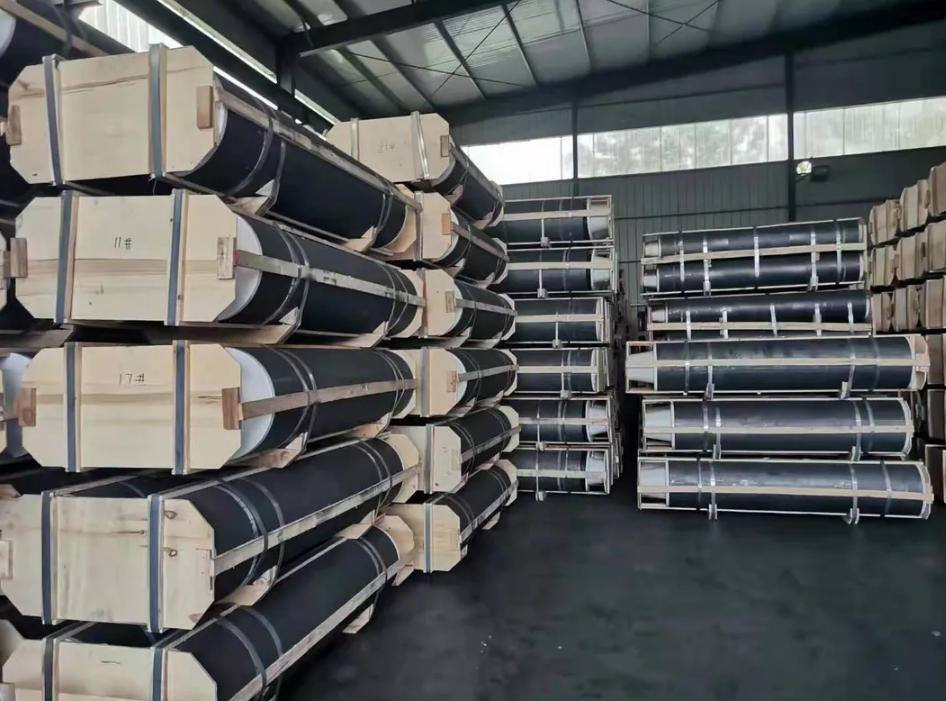

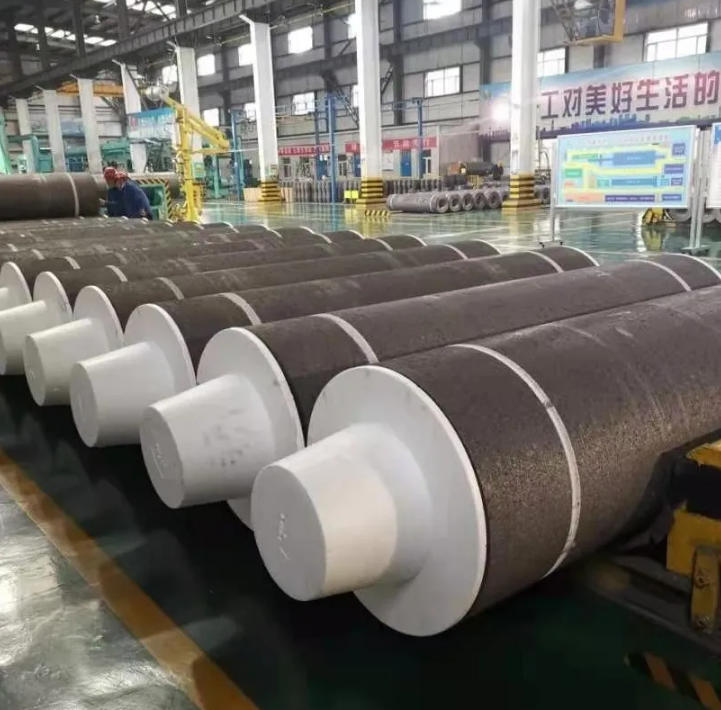

Photos For Carbon Electrode Graphite With Nipples:
