carbon block SGL8510/imported graphite

  • carbon block SGL8510/imported graphite
Place of Origin China
Brand Name Haisen
Certification haisen carbon
Model Number Haisen carbon
Price USD1700/MT
Packaging Details pallets
Delivery Time 10-15days
Payment Terms TT/LC
Supply Ability 100MT/weeks
Product Details
Leave a Message
Product Description

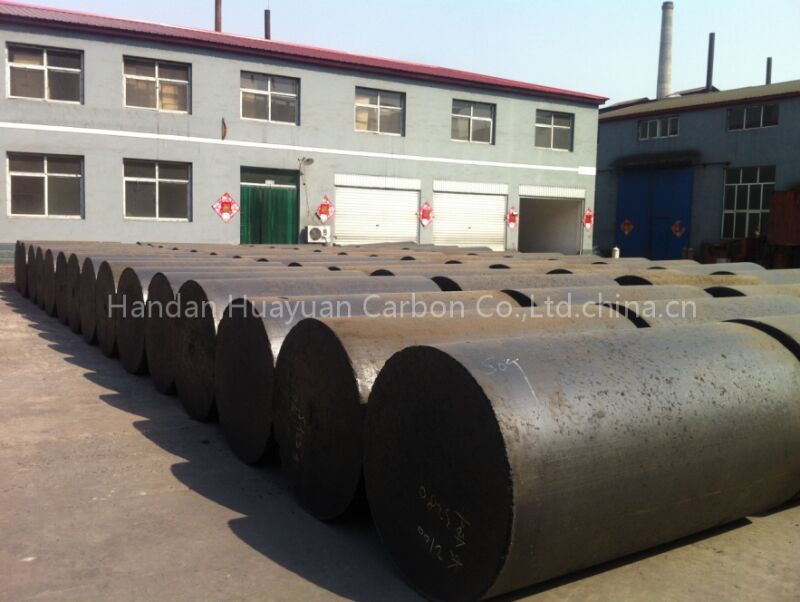

carbon graphite round





Specifications

Fine grain
Homogeneous structure
High density
Excellent thermal conductivity
High mechanical strength



1.Applications

- Molds, chutes, sleeves, sheathes, linings, etc. in continuous casting systems for making shaped steel, cast iron, copper, aluminum.

- Sintering molds for cemented carbides and diamond tools.

- Sintering molds for electronic components.

- Electrodes for EDM.

- Heaters, heat shields, crucibles, boats in some industrial furnaces (such as furnaces for pulling monocrystalline silicon or optical fibers).

- Bearings and seals in pumps, turbines and motors.

- and so on.



2.Programmable properties

- Fine grain

- Homogeneous structure

- High density

- Excellent thermal conductivity

- High mechanical strength

- Proper electrical conductivity

- Minimum wettability to molten metals



3.Typical Sizes

Blocks

Length x Width x Thickness (mm)

200x200x70, 250x130x100, 300x150x100, 280x140x110, 400x120x120, 300x200x120, 780x210x120, 330x260x120, 650x200x135, 650x210x135, 380x290x140, 500x150x150, 350x300x150, 670x300x150, 400x170x160, 550x260x160, 490x300x180, 600x400x200, 400x400x400

Rounds

Diameter (mm): 60, 100, 125, 135, 150, 200, 250, 300, 330, 400, 455

Thickness (mm): 100, 135, 180, 220, 250, 300, 450

* Other dimensions are available on request.



4.Specifications

Specifications

 Unit

Value

Bulk Density

g/cc

1.70 - 1.85

Compressive Strength

MPa

25 - 70

Bending Strength

MPa

15 - 40

Shore hardness



30 - 50

Specific Resistance

micro ohm.m

8.0 - 15.0

Ash  (Normal Grade)

%

0.05 - 0.2

Ash  (purified)

ppm

30 - 50

Maximum Grain Size

micron

44
