High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

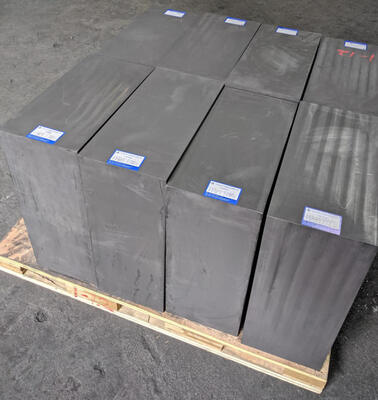

Large Image : High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

Product Details:

Place of Origin:	China
Brand Name:	ChaoYo
Certification:	SGS
Model Number:	graphite block

Payment & Shipping Terms:

Minimum Order Quantity:	10tons
Packaging Details:	pallets
Delivery Time:	10-15days
Payment Terms:	TT/LC
Supply Ability:	100MT/weeks
Minimum Order Quantity:	25MT

Contact Now

Detailed Product Description

Size:	200200200mm(7.877.877.87in)	Graphite Density:	1.65-1.75g/cm2

High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

graphite brick and carbon brick are widely used as the lining material in various of high temperature furnace or chemical equipment. In many chemical processes, the equipment and reaction vessels must be protected against the acidic and caustic materials used in the processes. The linings made from ceramic or synthetic plastic type materials are often unsuitable, since they may not withstand chemical attack, high temperature or sudden temperature changes. Alkaline solutions and hydrofluoric acid are of great importance in chemical technology, but they rapidly destroy equipment linings not made of carbon containing materials.

High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

TECHNICAL PROPERTY FOR GRAPHITE BRICK

Test Item	unit	JX- GZ1	JX- GZ2	JX- GZ3
Electric Resistance	μ Ωm	8.3	≤8.	≤9.0
Bulk Density	g/cm³	1.72-1.74	1.70-1.72	1.68-1.70
Grain Size	mm	0.8	0.8	0.8
Compressive Strength	M pa	40	≥35	≥32
Bending Strength	M pa	17.5	≥14.5	≥14.5
Porosity	%	18	≤20	≤22
Ash Content	%	0.09	≤0.2	≤0.3
C.T.E.( to 100 °C)	100-6/°C	2.4	2.5	2.9
Size The size can be made according to customers’ requirement	mm	76mm x 115mm x 230mm 64mm x 115mm x 230mm 31mm x 115mm x 230mm

TECHNICAL PROPERTY FOR CARBON BRICK

SPECIFICATION	UNIT	Non-impregnated	Impregnated
Bulk Density	g/cm3	1.5-1.65	1.65-1.8
Porosity	%	10to20	≤8
Compressive Strength	Mpa	45-65	≥80
Bending Strength	Mpa	18	≥26
Tensile Strength	Mpa	8	≥12.5
Ash Content	%	≤3	≤3
Using Temperature	℃	800-1000	≤180
Acid Resisting	HCL+H2SO4, 20%	≥98	≥99
Alkali Resisting	%	≥98	Nil
SIZE		240 x 115 x 20mm (Thick: 30mm 40mm 50mm 65mm 80mm 100mm)
SIZE		240 x 115 x 20mm (Thick: 30mm 40mm 50mm 65mm 80mm 100mm)
PACKAGE		Carton on wooden pallet or by negotiation.

High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

The application of graphite block:
1. Used for producing graphite crucible, moulds, rotor and shaft, ect.
2. Used as the materials for the furnaces
3. Used as various machining parts in the acid, alkaline, or corrosion environment
4. Used for the graphite electrode making
5. Used to manufacture seals and bearings in pumps, motors and turbines

The forming process of our graphite blocks:
Our graphite block is made from superior petroleum coke, and manufactured through crushing, calcining, medium crushing, milling,
screening, dosing, kneading, forming, baking, impregnation, graphitization, machining, and inspection. Every step procedure is
strictly controlled by our engineers to ensure the product quality.

High Pure Heat Exchanger Fine Grain Edm Copper Moulded Isostatic Graphite Block

Graphite brick

1. Good electrical conductivity:

good lubricity, high temperature resistance, good electrical conductivity, high mechanical strength

2. Support customization:

A large number of quasi specifications in stock, stable product performance, long practical life, can be customized

3. Stable performance: carefully select raw materials for strict testing of products and refuse to shoddy
