Graphite Products Carbon Electrode UHP/HP/RP Dia 300-700mm Graphite Electrode With Nipple for Eaf
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description

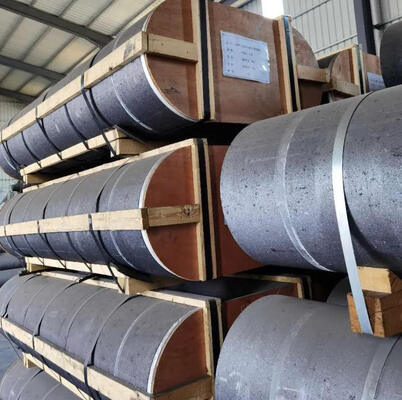

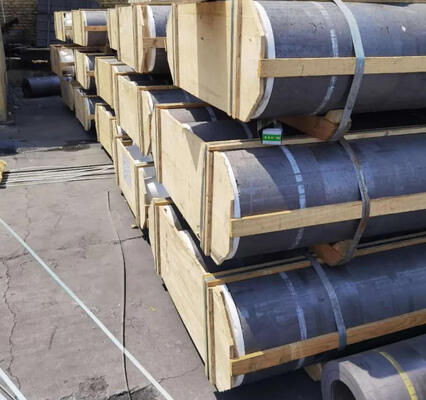

Graphite Products Carbon Electrode UHP/HP/RP Dia 300-700mm Graphite Electrode With Nipple for Eaf
Graphite electrode is a high-temperature graphite conductive material composed of petroleum coke and tar as fillers, and coal tar as binder. Graphite electrodes have the characteristics of low resistance, good conductivity and thermal conductivity, high oxidation resistance and thermal shock resistance, and high mechanical strength.Graphite electrodes can be divided into ordinary power graphite electrodes, high-power graphite electrodes, and ultra-high power graphite electrodes.
The diameter of graphite electrodes is 75mm-800mm. We produce graphite electrodes and electrode nipples. We can produce various specifications of products according to customer requirements. Our advantages: 1. Made in China quality, 2. Factory direct sales, 3. Fast delivery, 4. Competitive prices
Graphite Electrode Materials: petroleum coke, needle coke, coal pitch;
Graphite Electrode Process: calcination, compounding, kneading, pressing, baking,impregnation, graphitization and machining;
Graphite Electrode Grades: RP/HP/UHP;
Graphite Electrode Features:
Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time.
1. Low electric resistance 2. High density 3. Good electrical conductivity 4. High anti-oxidation capability 5. Precise machining accuracy 6. Low sulphur and low ash, not give steel second time impurity
Graphite Electrode Application:
1. Used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.
2. As the best conductive material for the electric arc furnaces and smelting furnace.
3. Used in the closed arc & resistor furnace.
4. For the production of graphite shaped products. such as various crucibles,shapes, boats and heating elements and other graphite products.
Graphite Electrode Diameter:
from 75 to 700mm. We can produce various specifications according to customer requirements.
1. Used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.
2. As the best conductive material for the electric arc furnaces and smelting furnace.
3. Used in the closed arc & resistor furnace.
4. For the production of graphite shaped products. such as various crucibles,shapes, boats and heating elements and other graphite products.
Graphite Electrode Diameter:
from 75 to 700mm. We can produce various specifications according to customer requirements.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Specification
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
