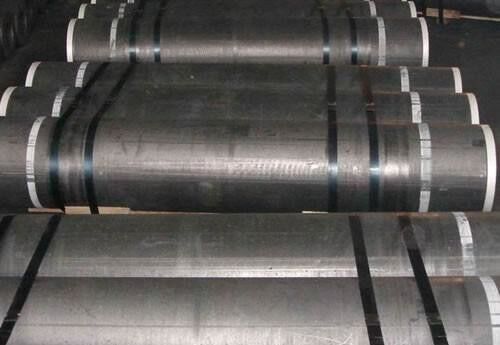

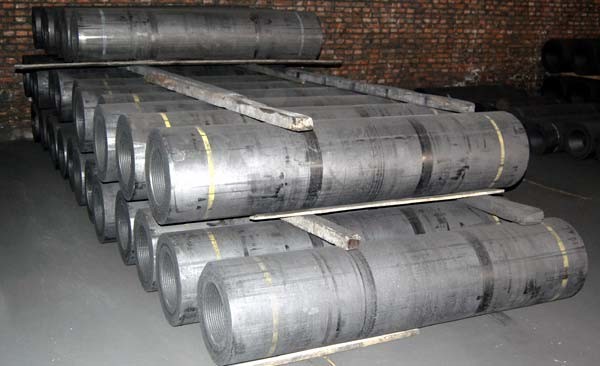

Excellent Resistance Dia200mm Graphite Electrode Powder For Furnace Top
|
Graphite Products physical and chemical performance index
|
||||||
|
Brand
|
||||||
|
Items
|
GT-CIPRQ
|
GT-CIP1RB
|
GT-2F
|
GT-6
|
GT-T7
|
GT-D8
|
|
Average grain size,μm
|
8
|
7
|
10
|
11
|
8
|
5
|
|
Density,g/cm3
|
1.85
|
1.89
|
1.75
|
1.72
|
1.8
|
1.85
|
|
Specific resistivity,μΩ·m
|
10
|
12
|
13
|
14
|
12
|
13
|
|
Shore Hardness
|
68
|
70
|
60
|
60
|
65
|
65
|
|
Flexural Strength,Mpa
|
60
|
67
|
42
|
40
|
56
|
62
|
|
Compressive Strength,Mpa
|
130
|
150
|
88
|
85
|
110
|
125
|
|
Total Porosity, %
|
11
|
10
|
14
|
15
|
13
|
12
|
|
Ash Content,ppm
|
50
|
50
|
50
|
800
|
200
|
300
|
Applications of Graphite Electrode UHP
1.For arc furnaces of electric arc furnaces. Graphite electrodes are most often used in a coal-smelting electric furnace. 2.For a closed arc 3.For a resistor furnace 4.For the production of graphite shaped products. The graphite electrode blank is also used for processing in various crucibles,shapes, boats and heating elements and other graphite products. For example, in the quartz glass industry, for each production of 1 ton of an electric melting tube, a graphite electrode 10 m is required, for each quartz brick of 1 ton it is necessary to consume 100 kg of graphite electrode.
Characteristics Of Graphite electrodes:
1. Excellent Thermal Conductivity Graphite boasts exceptional thermal conductivity, far superior to most metals. It can efficiently transfer heat and maintain stable thermal performance even in extreme temperature environments (from ultra-low to high temperatures above 3000℃). This advantage makes it an ideal material for heat dissipation components, high-temperature furnaces, and thermal management systems in electronics, metallurgy, and aerospace industries.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
