Regular Power Graphite Electrode RP 150 1800 mm for Metal Melting with Nipples
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
Regular Power Graphite Electrode RP 150 1800 mm for Metal Melting with Nipples
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace, ladle furnace, submerged arc electric furnace for the production of alloy steel, metal and nonmetallic materials. Our graphite electrodes include regular power, high power, super high power and ultra high power. Our plant offers various dimensions and grades to meet customers’ requirements for the specific applications.
Graphite Electrode Application:
1. Used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.
2. As the best conductive material for the electric arc furnaces and smelting furnace.
3. Used in the closed arc & resistor furnace.
4. For the production of graphite shaped products. such as various crucibles,shapes, boats and heating elements and other graphite products.
Graphite Electrode Diameter:
from 75 to 700mm. We can produce various specifications according to customer requirements.
1. Used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.
2. As the best conductive material for the electric arc furnaces and smelting furnace.
3. Used in the closed arc & resistor furnace.
4. For the production of graphite shaped products. such as various crucibles,shapes, boats and heating elements and other graphite products.
Graphite Electrode Diameter:
from 75 to 700mm. We can produce various specifications according to customer requirements.
Technical Data
| ITEMS | CLASSIFICATION | UNIT |
NOMINAL DIAMETER(MM) 200MM
|
| ELECTRICAL RESISTANCE (MAX) | POLE / NIPPLE | μΩm | 9.0-8.0 |
| BENDING STRENGTH (MIN) | POLE / NIPPLE | Mpa | 10.0-15.0 |
| YOUNG'S MDULUS (MAX) | POLE / NIPPLE | Gpa | 9.4-14.0 |
| BULK DENSITY (MIN) | POLE / NIPPLE | g/cm³ | 1.58-1.70 |
|
THERMAL EXPANSION COEFFICIENT (MIN) (100℃--600℃) CTE |
POLE / NIPPLE | ×10-6/℃ | 2.9-2.7 |
| ASH CONTENT (MAX) | --- | % | 0.5 |
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Specification
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple

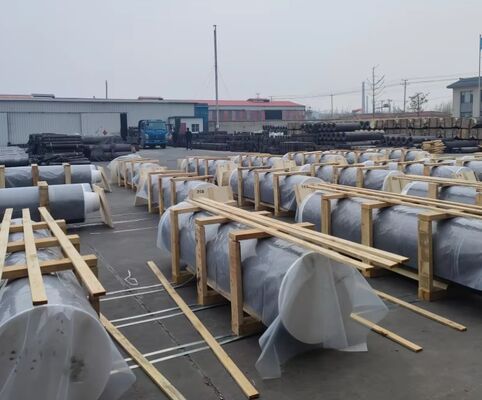

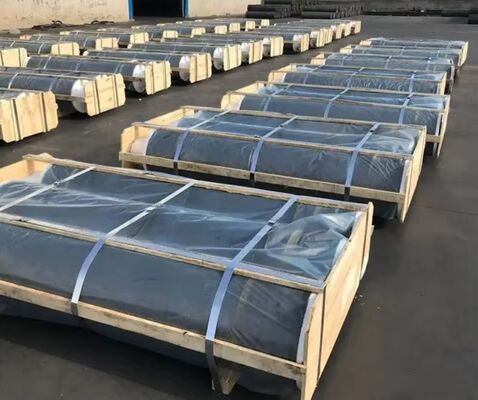

Packing Details:
Wooden Case/Pallets with steel strips or As the customer's requirements
Port:
Tianjin Port, Qingdao Port
Leading Time:
Shipped in 15-30 days after payment
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
