China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple

  • China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple
  • China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple
Place of Origin China
Brand Name Chaoyo
Certification QA/QC
Model Number graphite electrode
Minimum Order Quantity 25tons
Price USD1000/MT

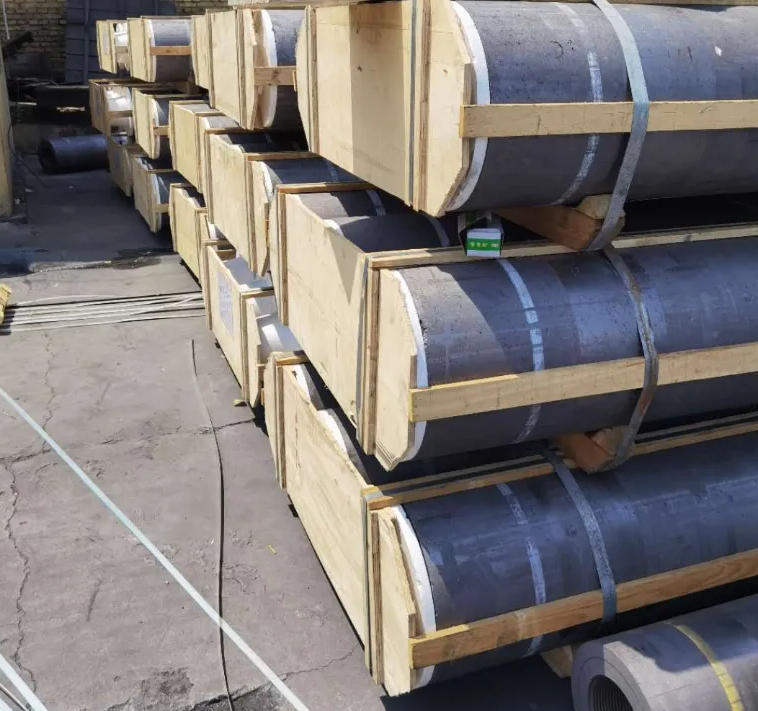

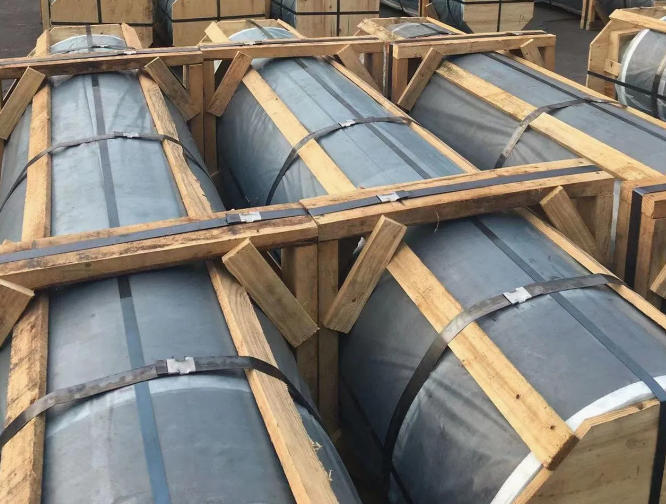

Packaging Details wooden pallet
Delivery Time 10-15days
Payment Terms TT/LC
Supply Ability 300 Metric Ton/Metric Tons per Month
Product Details
Grade UHP (Ultra High Power),HP (High Power),RP (Regular Power) Thermal Expansion 1.5 - 2.8 X10-6 / (100-600 )
Apparent Density (g/cm³ ) 1.6-1.9 Resistance (μω.m) 4 - 9 Micro Ohm.m
Length 1600~2400mm
You can tick the products you need and communicate with us in the message board.
Diameter 100-700mm Length 1500-2700mm
Item RP/HP/UHP Grade Graphite Electrodes Type Graphite Electrodes
Carbon Content High-Carbon Grade UHP
Forming Way Extruded Graphite Crystal Morphology Aphanitic Graphite
Composition Petroleum and Coke Transport Package Wooden Pallets/Wooden Cases
HS Code 85451100 Production Capacity 10000mt/Month
Leave a Message
Diameter 100-700mm Length 1500-2700mm
Product Description

China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple



Graphite electrodes are mainly made of petroleum coke and needle coke,and coal tar is used as a binder.It is made by calcination,compounding,kneading,pressing,roasting,graphitization and machining.According to the quality index of graphite electrode(electric current capability,it can be divided into RP,HP and UHP.



China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple 0

The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.



Graphite Electrodes Diameter Tolerance Unit: mm

UHP
Item Classification Unit Nominal Diameter (mm)
300-400 450-500 550-600 700

Electrical resistivity

max

 Pole
Nipple		 μΩm 5.5
4.0		 5.5
4.0		 5.5
4.0		 5.5
4.0

Bending strength

min

 Pole
Nipple		 Mpa 10.5
18.0		 10.5
18.0		 11.0
20.0		 11.0
20.0

Young's modulus

max

 Pole
Nipple		 Gpa 14.0
18.0		 14.0
18.0		 14.0
22.0		 14.0
22.0

Bulk density

min

 Pole
Nipple		 g/cm3 1.68
1.78		 1.68
1.78		 1.68
1.78		 1.68
1.78

Thermal expansion coefficient

max

 Pole
Nipple		 ×10-6/℃ 1.5
1.4		 1.5
1.4		 1.4
1.2		 1.4
1.2

Ash Content

max

   % 0.2 0.2 0.2 0.3

Properties

Item Unit Norminal Diameter
UHP HP RP
≤Φ400 ≥Φ450 ≤Φ400 ≥Φ450 ≤Φ300 ≥Φ350
Resistance E μΩ.m ≤5.5 ≤6.5 ≤8.5
N ≤4.5 ≤5.5 ≤6.5

Bending

Strength

 E MPa ≥13.0 ≥10.5 ≥9.8 ≥8.5 ≥7.0
N ≥20.0 ≥16.0 ≥15.0

Elastic

Modulus

 E Gpa ≤14.0 ≤12.0 ≤9.3
N ≤18.0 ≤16.0 ≤14.0
Bulk Density E g/cm³ ≥1.70 ≥1.65 ≥1.55
N ≥1.78 ≥1.73 ≥1.69

CTE.

(100-600℃)

 E 10-6/℃ ≤1.5 ≤2.4 ≤2.9
N ≤1.4 ≤2.2 ≤2.8
Ash % ≤0.3 ≤0.3 ≤0.5

China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple 1

* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.



Application:
Mainly used for the electric arc furnace to smelt the molten steel and used for the refining furnace such as AOD VOD LF furnaces in the steel and non-ferrous metal metallurgy industry.

The core advantages of the product:

  1. Anti-oxidation treatment for longevity.
  2. High-purity,high-density,strong chemical stability.
  3. High machining accuracy,good surface finishing.
  4. High mechanical strength,low electrical resistance.
  5. Resistant to cracking & spalling.
  6. High resistance to oxidation and thermal shock.

Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple



China Manufacturer Price Sales EAF Dia 600mm Graphite Electrode UHP 4TPIL Nipple 2

Raw material:

Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.



Production Process:

calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.



Features:

  • low resistivity
  • good electrical conductivity
  • low ash
  • compact structure
  • good anti oxidation and high mechanical strength

so it is the best conductive material for electric arc furnace and smelting furnace.
