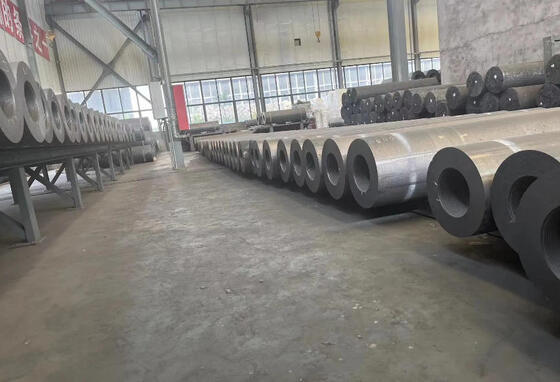

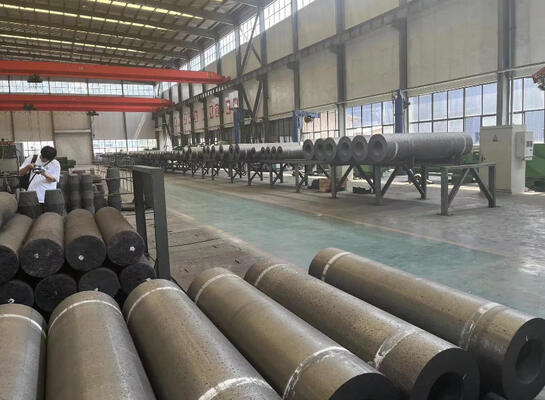

Carbon UHP/High Power/RP Graphite Electrode 100 200 300 400 500 600 700mm
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
Carbon UHP/High Power/RP Graphite Electrode 100 200 300 400 500 600 700mm
Did you know that there are two ways to make iron? The blast furnace method and the electric arc furnace method. The electric arc furnace method recycles used iron scrap by melting it in an electric arc furnace. It is the graphite electrodes inside the furnace that actually melt the iron. Graphite Electrode has high thermal conductivity and is very resistant to heat and impact. It also has low electrical resistance, which means it can conduct the large electrical currents needed to melt iron.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Graphite Electrodes Diameter Tolerance Unit: mm
Properties
| Item | Unit | Norminal Diameter | ||||||
| UHP | HP | RP | ||||||
| ≤Φ400 | ≥Φ450 | ≤Φ400 | ≥Φ450 | ≤Φ300 | ≥Φ350 | |||
| Resistance | E | μΩ.m | ≤5.5 | ≤6.5 | ≤8.5 | |||
| N | ≤4.5 | ≤5.5 | ≤6.5 | |||||
|
Bending Strength |
E | MPa | ≥13.0 | ≥10.5 | ≥9.8 | ≥8.5 | ≥7.0 | |
| N | ≥20.0 | ≥16.0 | ≥15.0 | |||||
|
Elastic Modulus |
E | Gpa | ≤14.0 | ≤12.0 | ≤9.3 | |||
| N | ≤18.0 | ≤16.0 | ≤14.0 | |||||
| Bulk Density | E | g/cm³ | ≥1.70 | ≥1.65 | ≥1.55 | |||
| N | ≥1.78 | ≥1.73 | ≥1.69 | |||||
|
CTE. (100-600℃) |
E | 10-6/℃ | ≤1.5 | ≤2.4 | ≤2.9 | |||
| N | ≤1.4 | ≤2.2 | ≤2.8 | |||||
| Ash | % | ≤0.3 | ≤0.3 | ≤0.5 | ||||
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
Mainly used for the electric arc furnace to smelt the molten steel and used for the refining furnace such as AOD VOD LF furnaces in the steel and non-ferrous metal metallurgy industry.
Properties:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
