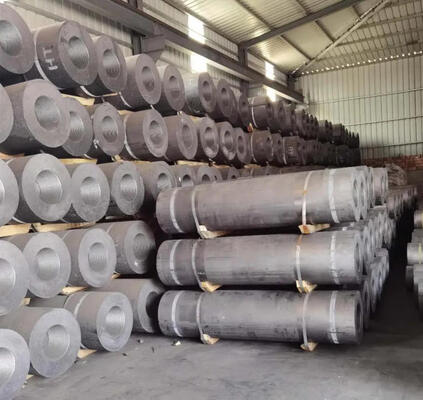

UHP700 UHP600 HP450 RP150 High Power Graphite Electrode in Steelmaking
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |

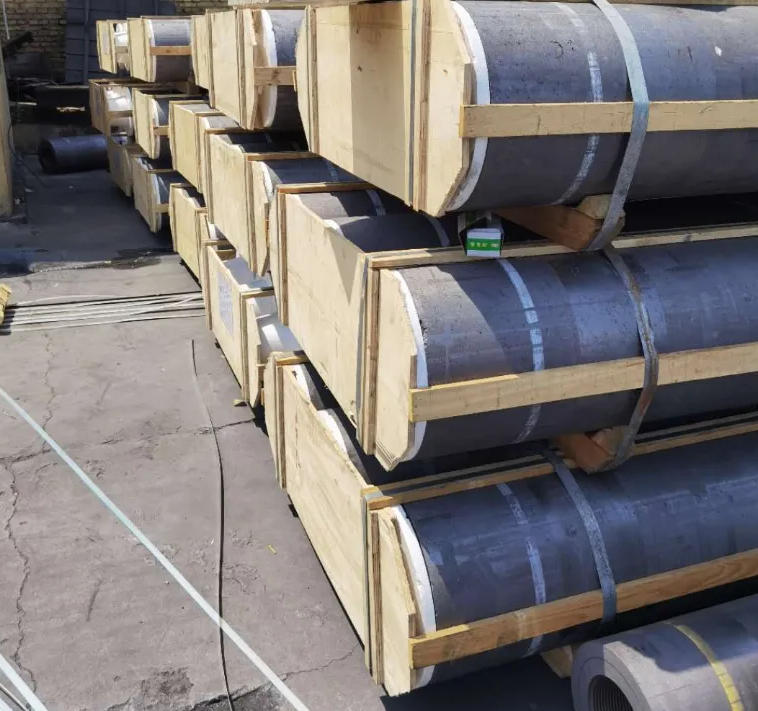

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
UHP700 UHP600 HP450 RP150 High Power Graphite Electrode in Steelmaking
Graphite electrode raw materials use the domestic petroleum coke and pitch coke and imported Japanese needle coke .HP grade graphite electrode contain 30% imported needle coke. UHP graphite electrode contain more than 80% imported needle coke. They are widely used in electric arc furnace(EAF), ladle furnace(LF) for the production of alloy steel, metal and nonmetallic materials. They are characterized by low resistance, good electric and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc
Technical Data:
| Graphite Electrode Technical data | |||||||
| Specification | RP | HP | UHP | ||||
| φ200-300 | φ350-600 | φ200-400 | φ450-600 | φ250-400 | φ450-600 | ||
| Electrical Resistivity μ Ω.m ≤ |
Electrode | 8.5 | 6.5 | 5.5 | |||
| Nipple | 6.5 | 5.5 | 4.5 | ||||
| Bulk Density g/cm3 ≥ |
Electrode | 1.53 | 1.52 | 1.62 | 1.6 | 1.67 | 1.66 |
| Nipple | 1.69 | 1.73 | 1.75 | ||||
| Flexural Strength ≥Mpa |
Electrode | 8.5 | 7 | 10.5 | 9.8 | 11 | |
| Nipple | 15 | 16 | 20 | ||||
| Elastic Modulus Gpa ≤ |
Electrode | 9.3 | 12 | 14 | |||
| Nipple | 14 | 16 | 18 | ||||
| Ash % ≤ |
Electrode | 0.5 | 0.3 | 0.3 | |||
| Nipple | 0.5 | 0.3 | 0.3 | ||||
| CTE(100ºC-600ºC) 10 -6/ºC ≤ |
Electrode | 2.9 | 2.4 | 1.5 | |||
| Nipple | 2.7 | 2.2 | 1.4 | ||||
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
