HP Grade 300mm Graphite Electrode Thermal Stability for Smelting
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description

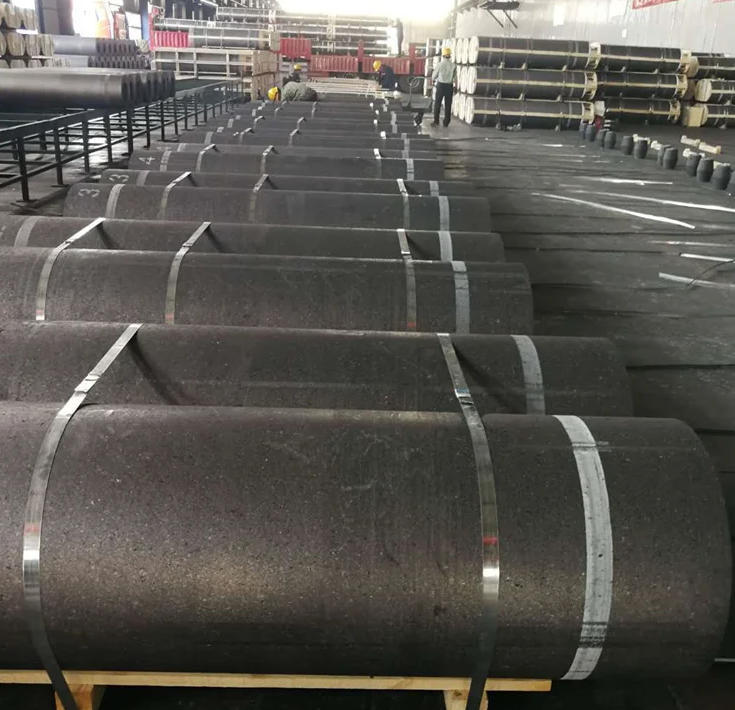

HP Grade 300mm Graphite Electrode Thermal Stability for Smelting
GP - impregnated cutting products. They are made from petroleum coke of coal tar pitch. In addition, in order to achieve a better welding effect, they are additionally impregnated with pitch. It gained its wide popularity in the metal casting industry, in ferroalloy furnaces and electric arc apparatus.
- E - electrode;
- G - graphite;
- P - impregnated;
- HP - for medium power DC arc furnaces.

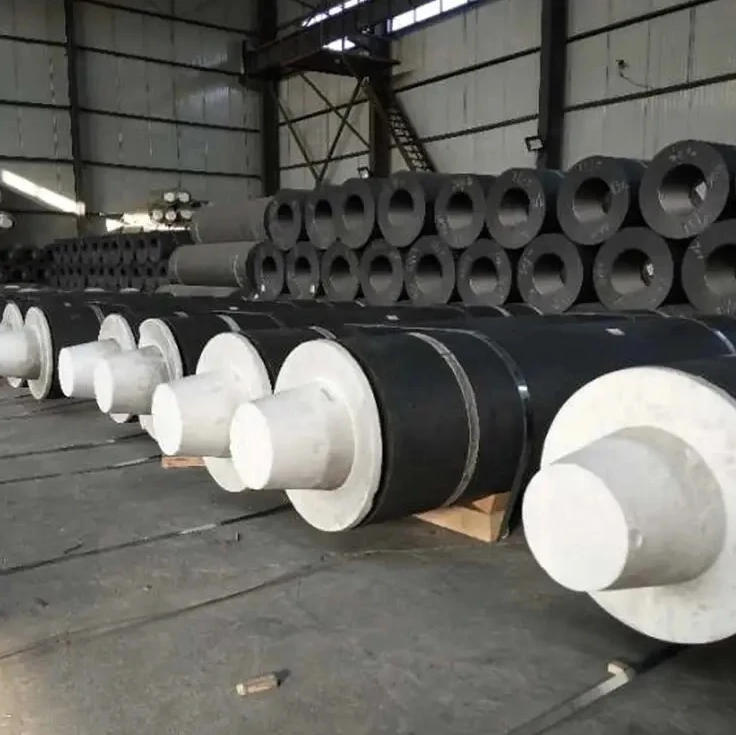

Each electrode is supplied with a nipple. At the request of the customer, the nipples can be supplied separately from the electrodes or in addition to the set. Electrodes with a diameter of 75 to 200 mm inclusive and nipples for them are made with a cylindrical thread, and electrodes with a diameter of 250 mm or more and nipples for them are made with a tapered thread.
In order to eliminate the unwinding of the conical nipple joint during vibration of the electrodes in the furnace, the nipples to the electrodes can be made with grooves and equipped with stopper plugs or stopper paste.
Technical Data:
| Diameter | length (mm) | around weight kgs |
| Φ20 | 1700 | 1 |
| Φ25 | 1700 | 1.5 |
| 1900 | 1.68 | |
| 2200 | 1.95 | |
| 2250 | 1.98 | |
| Φ30 | 1700 | 2 |
| 1900 | 2.24 | |
| 2200 | 2.59 | |
| Φ35w | 1700 | 2.85 |
| 1900 | 3.2 | |
| 2100 | 3.52 | |
| 2200 | 3.68 | |
| Φ40 | 1700 | 3.5 |
| 1900 | 4 | |
| 2100 | 4.32 | |
| 2200 | 4.63 | |
| 2400 | 5.05 | |
| 2270 | 4.7 | |
| Φ45 | 2250 | 5.21 |
| Φ50 | 1700 | 5.5 |
| 1920 | 6.3 | |
| 2100 | 6.8 | |
| 2200 | 7.12 | |
| 2500 | 8 | |
| Φ60 | 1400 | 6.5 |
| 1700 | 7.9 | |
| 1300 | 6.04 | |
| Φ63 | 2000 | 8.7 |
| Φ70 | 2100 | 5.68 |
| 2250 | 5.5 | |
| 2500 | 6.3 | |
| Φ72 | 2250 | 15.7 |
| 2470 | 17 | |
| Φ75 | 2250 | 16.4 |
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Applications:
Mainly used in steel-making in electric furnace,mineral hot furnace and electric resistance furnace.
Hard Alloys, Graphite Mold, Diamond Aiguille, Saw Sinter Film, semiconductor Monocrystal Graphite Mold, Continuous Casting, Casting Steel, Alloys casting, Metals Casting, Graphite for Ray-cable, Graphite for Mid or Mini-type Rocket, Crucibles.
