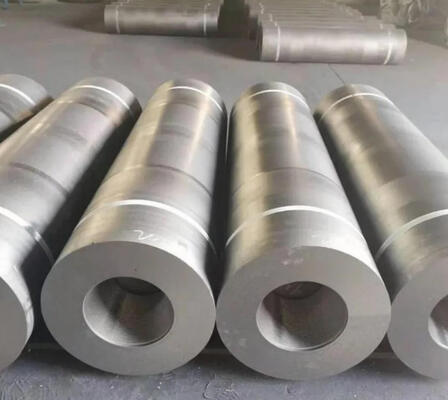

RP/HP/UHP Graphite Electrode Supplier for Silicon Metal Production
| Place of Origin | China |
|---|---|
| Brand Name | Haisen |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25 |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
Product Description
RP/HP/UHP Graphite Electrode Supplier for Silicon Metal Production
Graphite electrode raw materials use the domestic petroleum coke and pitch coke and imported Japanese needle coke .HP grade graphite electrode contain 30% imported needle coke. UHP graphite electrode contain more than 80% imported needle coke. They are widely used in electric arc furnace(EAF), ladle furnace(LF) for the production of alloy steel, metal and nonmetallic materials. They are characterized by low resistance, good electric and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc
Technical Data:
| Graphite Electrode Technical data | |||||||
| Specification | RP | HP | UHP | ||||
| φ200-300 | φ350-600 | φ200-400 | φ450-600 | φ250-400 | φ450-600 | ||
| Electrical Resistivity μ Ω.m ≤ |
Electrode | 8.5 | 6.5 | 5.5 | |||
| Nipple | 6.5 | 5.5 | 4.5 | ||||
| Bulk Density g/cm3 ≥ |
Electrode | 1.53 | 1.52 | 1.62 | 1.6 | 1.67 | 1.66 |
| Nipple | 1.69 | 1.73 | 1.75 | ||||
| Flexural Strength ≥Mpa |
Electrode | 8.5 | 7 | 10.5 | 9.8 | 11 | |
| Nipple | 15 | 16 | 20 | ||||
| Elastic Modulus Gpa ≤ |
Electrode | 9.3 | 12 | 14 | |||
| Nipple | 14 | 16 | 18 | ||||
| Ash % ≤ |
Electrode | 0.5 | 0.3 | 0.3 | |||
| Nipple | 0.5 | 0.3 | 0.3 | ||||
| CTE(100ºC-600ºC) 10 -6/ºC ≤ |
Electrode | 2.9 | 2.4 | 1.5 | |||
| Nipple | 2.7 | 2.2 | 1.4 | ||||
Quick Details
| Type: | Isostatic Graphite Rod | Application: | Used in electric furnace and mechanical industries etc. | Diameter: | Max.1000mm and dimensions customized |
| Length: | Max.3000mm and dimensions customized | Resistance (μΩ.m): | >5 Ω.mm2/m | Bulk Density (g/cm³ ): | >1.75g/cm3 |
| Porosity (%): | 18-30Mpa | Compressive Strength: | 35-60Mpa | Place of Origin: | Hunan China (Mainland) |
| Brand Name: | Fu Qiang | Model Number: | / | Graphite Content: | Max.99.99% |
| Max.Length: | 3000mm | Max.Working Temperature: | About 2000 Celsius Degree | Color: | Black |
| Shapes: | Tube,Pipe,Rod,Block,Plate Etc. | Material Grain Size: | 0.2-4mm | Wall Thickness: | 1.0~4.0mm |
| Preheating: | No Needed |
Packaging & Delivery
| Packaging Detail: | By steady wooden pallet / By wooden case / Could pack as customer's requirements in any special package! |
| Delivery Detail: | In about 10-15 days and checked on order quantity |
Specifications
30-99.9% Graphite Tube Pipe Rod Parts
1.Max.Graphite content 99.99%
2.Bulk Density >1.75g/cm3
3.Good thermal conductivity
Applications:
Mainly used in steel-making in electric furnace,mineral hot furnace and electric resistance furnace.
Hard Alloys, Graphite Mold, Diamond Aiguille, Saw Sinter Film, semiconductor Monocrystal Graphite Mold, Continuous Casting, Casting Steel, Alloys casting, Metals Casting, Graphite for Ray-cable, Graphite for Mid or Mini-type Rocket, Crucibles.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
