Natural Graphite Electrode Graphene Ef Lf Arc Furnaces Graphite Plate Welding Steeling Making Furnace Smelting Electrode
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

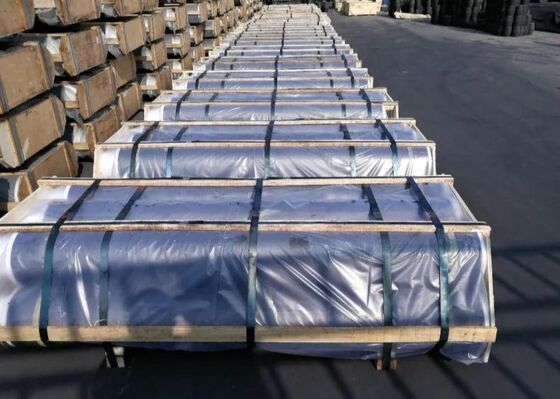

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
Natural Graphite Electrode Graphene Ef Lf Arc Furnaces Graphite Plate Welding Steeling Making Furnace Smelting Electrode
Description:
Graphite electrodes are characterized by low resistance, good electrical conductivity and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc. According to its high quality and low quality, it can be divided into ordinary power graphite electrode, high power graphite electrode and ultra high power graphite electrode.
Specification
|
Name |
Unit
|
Nominal Diameter
|
||||||
|
UHP Ultra-High-Power
|
HP Superstrong
|
RP Conventional Power
|
||||||
|
≤Φ400
|
≥Φ450
|
≤Φ400
|
≥Φ450
|
≤Φ300
|
|
|||
|
Resistivity
|
Electrode
|
ΜΩ · m
|
≤5.5
|
≤6.5
|
≤8.5
|
|||
|
Nipple
|
≤4.5
|
≤5.5
|
≤6.5
|
|||||
|
Flexural Strength
|
Electrode
|
MPa
|
≥11.0
|
≥10.5
|
≥9.8
|
≥8.5
|
|
|
|
Nipple
|
≥20.0
|
≥16.0
|
≥15.0
|
|||||
|
Elastic Modulus
|
Electrode
|
GPa
|
≤14.0
|
≤12.0
|
≤9.3
|
|||
|
Nipple
|
≤18.0
|
≤16.0
|
≤14.0
|
|||||
|
Density
|
Electrode
|
g / cm3
|
≥1.66
|
≥1.67
|
≥1.62
|
1.6
|
≥1.53
|
|
|
Nipple
|
≥1.75
|
≥1.73
|
≥1.69
|
|||||
|
Coefficient Of Thermal Expansion
|
Electrode
|
10-6 / ºC
|
≤1.5
|
≤2.4
|
≤2.9
|
|||
|
Nipple
|
≤1.4
|
≤2.2
|
≤2.8
|
|||||
|
ASH
|
%
|
≤0.3
|
≤0.3
|
≤0.5
|
||||
Applications of Graphite Electrode UHP
Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.
Advantages:
1.Anti-oxidation treatment for longevity.
2.High-purity,high-density,strong chemical stability.
3.High machining accuracy,good surface finishing.
4.High mechanical strength,low electrical resistance.
5.Resistant to cracking & spalling.
6.High resistance to oxidation and thermal shock.
2.High-purity,high-density,strong chemical stability.
3.High machining accuracy,good surface finishing.
4.High mechanical strength,low electrical resistance.
5.Resistant to cracking & spalling.
6.High resistance to oxidation and thermal shock.
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
