Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking

  • Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking
  • Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking
Place of Origin China
Brand Name Chaoyo
Certification QA/QC
Model Number graphite electrode
Minimum Order Quantity 25tons

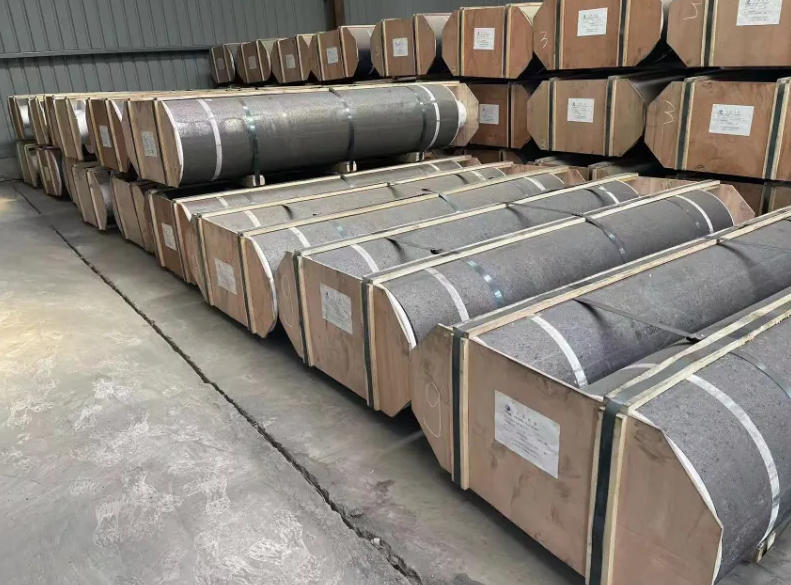

Packaging Details wooden pallet
Delivery Time 10-15days
Payment Terms TT/LC
Supply Ability 3000 Metric Ton/Metric Tons per Month
Product Details
Application EAF / LF Diameter 550mm
Length 1800mm Length Resistance (μΩ.m) ≤6.5
Apparent Density (g/cm³ ) ≥1.65 Thermal Expansion ≤2.4
Flexural Strength (N/㎡) ≥10.5 Type Electrode Block
Grade UHP (Ultra High Power) Connect 4TPI
Leave a Message
Product Description

Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking​



Description:

Graphite electrode is a conductive carbon rod, primarily used in Ultra High Power (UHP) Electric Arc Furnaces (EAFs), to generate intense heat (over 3,500°C) that melts scrap steel for recycling, leveraging graphite's unique properties like high thermal conductivity, electrical conductivity, and strength at extreme temperatures. These large cylindrical electrodes, made from needle coke, form an electric arc with the metal, enabling efficient, resource-saving steel production.
How They Work in Steelmaking
Current Delivery: Massive electrical current is sent through the graphite electrodes.
Arc Formation: An electric arc forms between the electrode tips and the steel scrap.
Melting: The arc's intense heat melts the scrap into new steel.
Assembly: Electrodes are connected into columns using threaded nipples for continuous operation.
Applications Beyond Steelmaking
Electrochemical Cells: Used as counter electrodes in corrosion testing and other lab applications due to chemical stability.
EDM (Electrical Discharge Machining): Used as tools for shaping metal.
Grades
UHP (Ultra High Power): For modern, high-productivity furnaces, made from premium needle coke.
HP (High Power) & RP (Regular Power): Other grades for different furnace demands.
Specification
Physical Properties
HP Grade
HP Grade
UHP Grade
EElectrical Resistance (max)
Electrode
less than 8.0
less than 7.0
less than 6.0
Bending Stength (min)
Electrode
11
12
12
Elastic Modulus (max)
Electrode
9
12
12
Bulk Density (min)
Electrode
more than 1.58
more than 1.65
more than 1.68
C.T.E (max)
Electrode
2.7
2.5
2.4
Ash (max) %
Electrode
less than 0.3%
less than 0.3%
less than 0.3%



item
value
Place of Origin
China
Brand Name
HQ
Type
Electrode Block
Application
Metallurgical Industry
Length
2000mm-2700mm
Resistance (μΩ.m)
4.0-8.8
Apparent Density (g/cm³ )
1.55-1.82
Thermal Expansion
1.1-2.6, 1.1-1.4
Flexural Strength (N/m2)
≥8Mpa
Product Name
UHP Grade Graphite Electrode
Raw Material
Petroleum Coke
Color
Black
Nipple
3TPI/4TPI/4TPIL
Applicattion
Smelting Steel
MOQ
10 Ton
Resistance
4.8 to 5.8 microns
Apparent Density
1.68-1.75
Flexural Strength
10-14mpa
Packing
Wooden Cases



Applications of Graphite Electrode UHP

Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.


Characteristics Of Graphite electrodes:

1. Excellent Thermal Conductivity Graphite boasts exceptional thermal conductivity, far superior to most metals. It can efficiently transfer heat and maintain stable thermal performance even in extreme temperature environments (from ultra-low to high temperatures above 3000℃). This advantage makes it an ideal material for heat dissipation components, high-temperature furnaces, and thermal management systems in electronics, metallurgy, and aerospace industries.


2. High Temperature Resistance With an extremely high melting point (around 3652℃) and boiling point (4827℃), graphite can maintain its structural integrity and mechanical properties without melting or decomposing under high-temperature conditions. It is resistant to thermal shock and can withstand rapid temperature changes, which is crucial for applications in high-temperature smelting, aerospace engine parts, and high-temperature experimental equipment.

3. Good Electrical Conductivity As a good electrical conductor, graphite has low electrical resistivity and excellent current-carrying capacity. It is widely used in the production of electrodes, brushes, conductive plates, and other electrical components.

4. Outstanding Chemical Stability Graphite is chemically inert and not easy to react with most acids, alkalis, and organic solvents.

5. Excellent Lubrication Performance Graphite has a layered crystal structure, and the layers can slide easily, providing excellent self-lubricating performance. It can work stably without additional lubricants, even under high load, high temperature, and high speed. This advantage makes it an ideal lubricating material for mechanical parts, molds, and sliding components, reducing friction and wear and improving equipment operation efficiency.

6. Light Weight and High Strength Compared with traditional metal materials, graphite products are lighter in weight while maintaining high mechanical strength and hardness.

Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 0



Product Advantage

* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea

Product Features

Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time.
1. Low electric resistance
2. High density
3. Good electrical conductivity
4. High anti-oxidation capability
5. Precise machining accuracy
6. Low sulphur and low ash, not give steel second time impurity



Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 1



Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 2



Production Application:

  1. Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
  2. Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
  3. Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
  4. Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
  5. Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis



Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 3



Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 4



Supply High Quality Graphite Electrode For Electric Arc Furnace Steelmaking 5
