Product Details:
Payment & Shipping Terms:
|
| Application: | EAF / LF | Diameter: | 550mm |
|---|---|---|---|
| Length: | 1800mm Length | Resistance (μΩ.m): | ≤6.5 |
| Apparent Density (g/cm³ ): | ≥1.65 | Thermal Expansion: | ≤2.4 |
| Flexural Strength (N/㎡): | ≥10.5 | Type: | Electrode Block |
| Grade: | UHP (Ultra High Power) | Connect: | 4TPI |

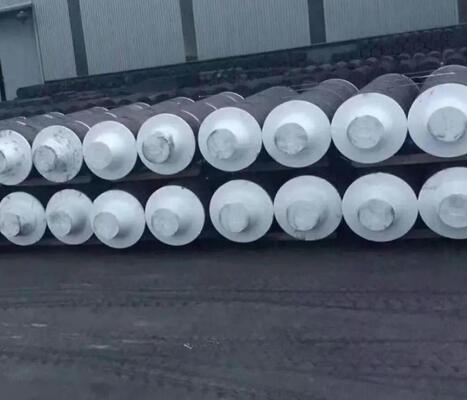

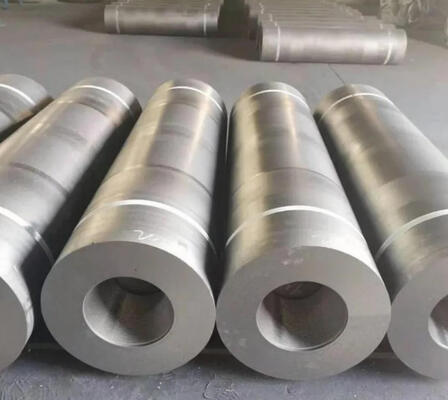

Carbon Graphite Electrode Block UHP Grade for Steel Application 1800mm Length Premium Product
Description:
Graphite electrodes are used in both DC and AC electric arc furnaces. Steelmaking workshops have to cover the cost of these consumable electrodes during new steel producion process. So optimizing the usage of graphite electrodes is a cost-saving tactic. Full range of grades and sources to meet performance & cost needs. Grades include:
1.HP for foundries, Ladle Furnaces and Low Powered EAFs
2.SHP for Higher powered foundries and Ladle furnaces
3.UHP for high-performance Melt Shop EAFs
| Item | unit | Nominal Diameter | ||||||
| RP | HP | UHP | ||||||
| <Φ300 | >Φ350 | <Φ400 | >Φ450 | <Φ400 | >Φ450 | |||
| Resistance | E | μΩ.m | <8.5 | <6.5 | <5.5 | |||
| N | <6.5 | <5.5 | <4.5 | |||||
| Bending Strength | E | Mpa | >8.5 | >7.0 | >10.5 | >9.8 | >11.0 | |
| N | >15.0 | >16.0 | >20.0 | |||||
| Elastic Modulus | E | Gpa | <9.3 | <12.0 | <14.0 | |||
| N | <18.0 | <16.0 | <14.0 | |||||
| B.D. | E | g/cm3 | >1.53 | >1.52 | >1.62 | >1.60 | >1.66 | >1.67 |
| N | >1.69 | >1.73 | >1.75 | |||||
| C.T.E (100~600°C) | E | 10-6/°C | <2.9 | <2.4 | <1.5 | |||
| N | <2.8 | <2.2 | <1.4 | |||||
| Ash | % | <0.50% | <0.30% |
<0.30% |
||||
Applications of Graphite Electrode UHP
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
Characteristics Of Graphite electrodes:
1. Excellent Thermal Conductivity Graphite boasts exceptional thermal conductivity, far superior to most metals. It can efficiently transfer heat and maintain stable thermal performance even in extreme temperature environments (from ultra-low to high temperatures above 3000℃). This advantage makes it an ideal material for heat dissipation components, high-temperature furnaces, and thermal management systems in electronics, metallurgy, and aerospace industries.
Product Advantage
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
