High Mechanical Strength Graphite Electrodes For Arc Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

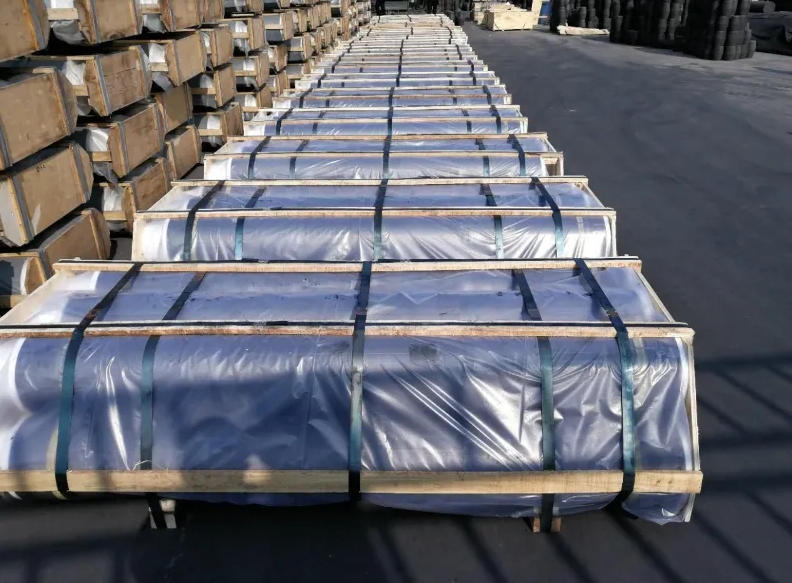

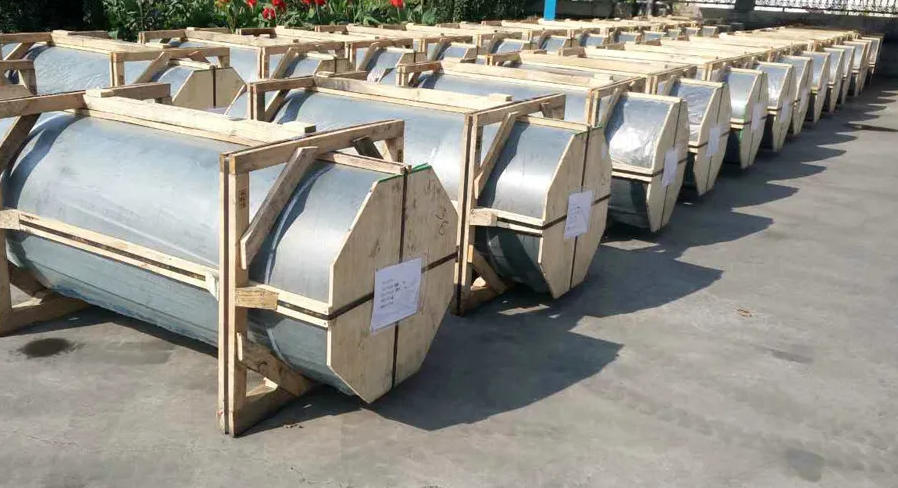

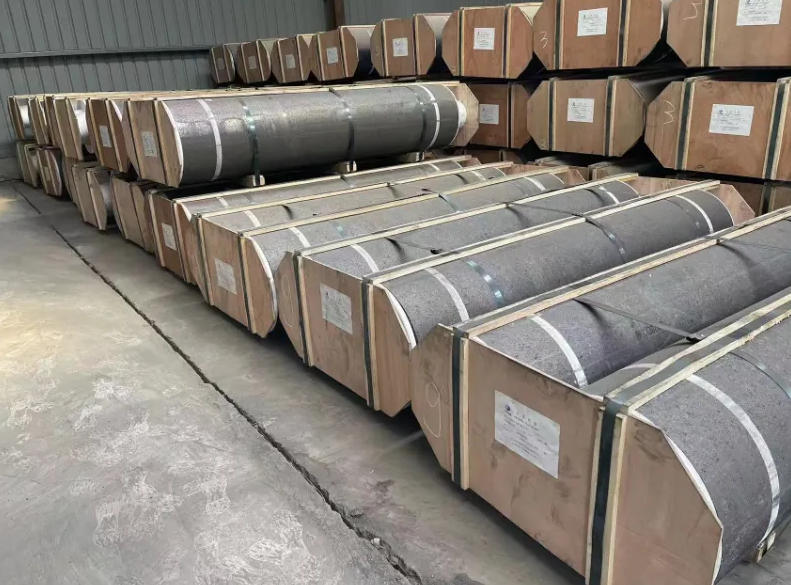

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
High Mechanical Strength Graphite Electrodes For Arc Furnace
Description:
Graphite electrodes are mainly made of petroleum coke and needle coke as raw materials, coal tar as binder, and are made by calcination, batching, kneading, pressing, roasting, graphitization, and machining. They are conductors that release electric energy in the form of arc in an electric arc furnace to heat and melt the charge. According to their quality indicators, they can be divided into ordinary power graphite electrodes, high power graphite electrodes and ultra-high power graphite electrodes.
The main raw material for the production of graphite electrodes is petroleum coke. A small amount of asphalt coke can be added to ordinary power graphite electrodes. The sulfur content of petroleum coke and asphalt coke cannot exceed 0.5%. Needle coke is also required when producing high power or ultra-high power graphite electrodes. The main raw material for the production of aluminum anodes is petroleum coke, and the sulfur content is controlled to be no more than 1.5% to 2%. Petroleum coke and asphalt coke should meet the relevant national quality standards.
The main raw material for the production of graphite electrodes is petroleum coke. A small amount of asphalt coke can be added to ordinary power graphite electrodes. The sulfur content of petroleum coke and asphalt coke cannot exceed 0.5%. Needle coke is also required when producing high power or ultra-high power graphite electrodes. The main raw material for the production of aluminum anodes is petroleum coke, and the sulfur content is controlled to be no more than 1.5% to 2%. Petroleum coke and asphalt coke should meet the relevant national quality standards.
Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining. Low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace.
Application Of Graphite electrodes: Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steelmaking, Industrial silicon furnace or melting copper. High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time
| Index(mm) |
bulk density (g/cm3) |
Cold crushing strength (MPa) |
Rupture strength (MPa) |
specific resistance μΩm |
ash content % |
grain size (mm) |
| 700-2300*350 | ≥1.58 | 20 | 7.5 | 9-10 | 0.4 | ≤3 |
| 600-700*2200 | 1.6-1.75 | 22 | 10 | 9 | 0.4 | |
| 600-800*2400 | 1.62 | 26 | 13 | 7 | 0.4 | |
| 420*880*3600 | ≥1.72 | ≥30 | 13.5 | ≤8.5 | 0.4 | 0.8 |
| 200*600*2200 | 1.75 | 2.8 | 13 | ≤8.5 | 0.4 | 2 |
Applications of Graphite Electrode UHP
Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.
Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
