UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes

  • UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes
  • UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes
Place of Origin China
Brand Name Chaoyo
Certification QA/QC
Model Number graphite electrode
Minimum Order Quantity 25tons

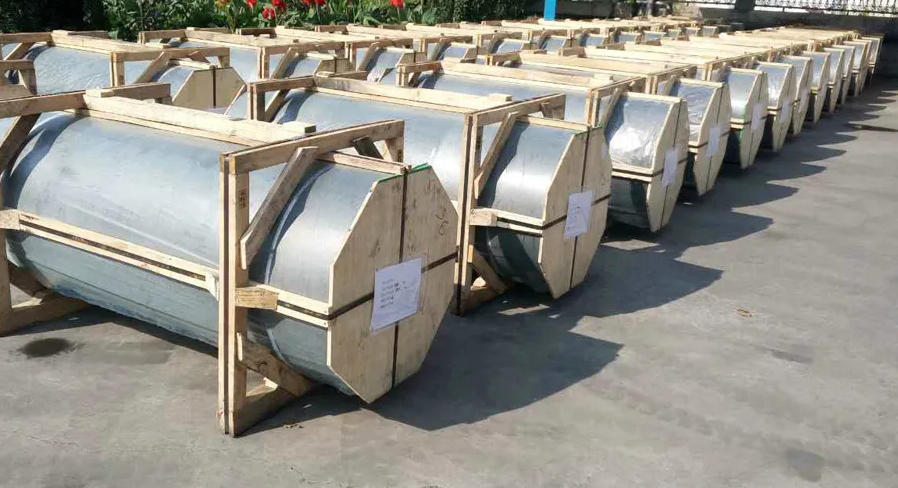

Packaging Details wooden pallet
Delivery Time 10-15days
Payment Terms TT/LC
Supply Ability 3000 Metric Ton/Metric Tons per Month
Product Details
Application EAF / LF Diameter 550mm
Length 1800mm Length Resistance (μΩ.m) ≤6.5
Apparent Density (g/cm³ ) ≥1.65 Thermal Expansion ≤2.4
Flexural Strength (N/㎡) ≥10.5 Type Electrode Block

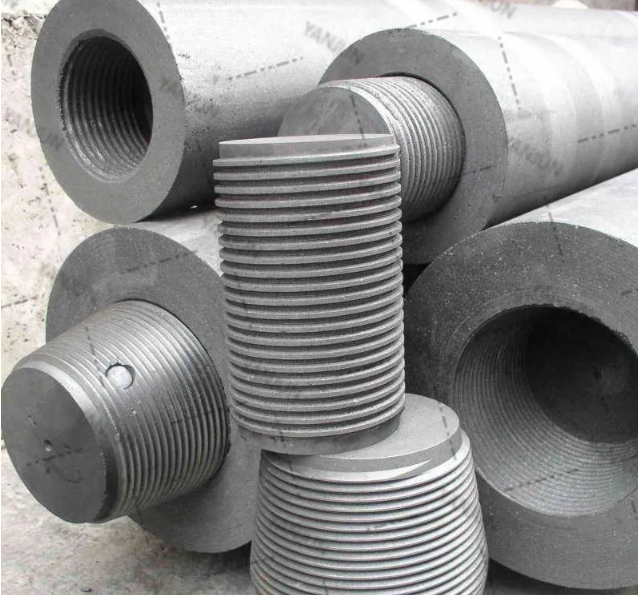

Grade UHP (Ultra High Power) Connect 4TPI
Leave a Message
Product Description

UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes​





Description:

Graphite electrodes are mainly made of petroleum coke and needle coke as raw materials, coal tar as binder, and are made by calcination, batching, kneading, pressing, roasting, graphitization, and machining. They are conductors that release electric energy in the form of arc in an electric arc furnace to heat and melt the charge. According to their quality indicators, they can be divided into ordinary power graphite electrodes, high power graphite electrodes and ultra-high power graphite electrodes.
The main raw material for the production of graphite electrodes is petroleum coke. A small amount of asphalt coke can be added to ordinary power graphite electrodes. The sulfur content of petroleum coke and asphalt coke cannot exceed 0.5%. Needle coke is also required when producing high power or ultra-high power graphite electrodes. The main raw material for the production of aluminum anodes is petroleum coke, and the sulfur content is controlled to be no more than 1.5% to 2%. Petroleum coke and asphalt coke should meet the relevant national quality standards.

Properties of Graphite Electrode UHP

.Ultra high power,

.Graphite electrode,

.Good quality,

.Competitive price.

Advantages of Graphite Electrode UHP

.The surface can be used for the long life of anti oxidation treatment,

.High temperature resistance, corrosion resistance, strong acid resistance,

.Excellent resistance to thermal shock and conduction,

.Good wear resistance, good lubricity and long service life.



Nomina diameter RP HP UHP
Current Carrying Capacity Current Density Current Carrying Capacity Current Density Current Carrying Capacity Current Density
in mm A A/cm2 A A/cm2 A A/cm2
12 300 10000-13000 14-18 13000-17400 17-24 15000-22000 20-30
14 350 13500-18000 14-18 17400-24000 17-24 20000-30000 20-30
16 400 18000-23500 14-18 21000-31000 16-24 25000-40000 19-30
18 450 22000-27000 13-17 25000-40000 15-24 32000-45000 19-27
20 500 25000-32000 13-16 30000-48000 15-24 38000-55000 18-27
22 550 32000-40000 13-16 35000-55000 14-22 42000-64000 17-26
24 600 35000-41000 13-15 41000-61000 14-21 50000-73000 17-25
28 700 39000-48000 10-12 55000-82000 14-21 67000-99000 17-25
32 800 43000-54000 8-10 / / / /



Applications of Graphite Electrode UHP

Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.


Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time

UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes 0



Product Advantage

* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.



UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes 1



Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes 2



Production Application:

  1. Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
  2. Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
  3. Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
  4. Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
  5. Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis



UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes 3



UHP Grade Graphite Electrode Manufacturer Electric Arc Furnace Electrodes 4
