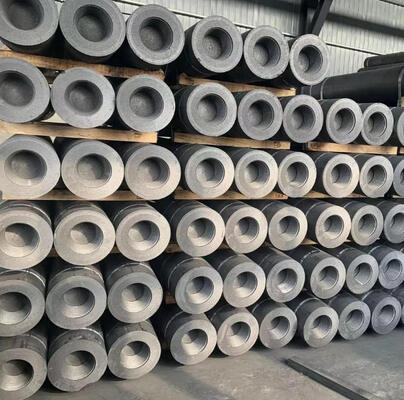

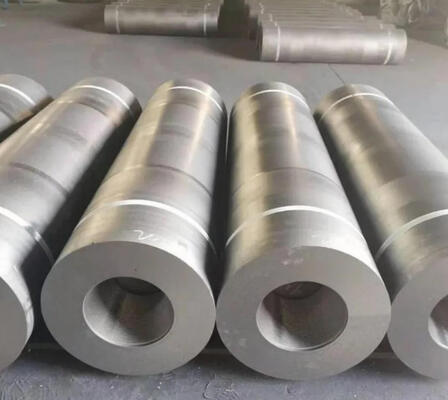

Graphite Products Carbon Electrode UHP/HP/RP Dia 350mm Graphite Electrode with Nipple for Lf or Eaf
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
Graphite Products Carbon Electrode UHP/HP/RP Dia 350mm Graphite Electrode with Nipple for Lf or Eaf
Description:
Graphite Products Carbon Electrode UHP/HP/RP Dia 350mm Graphite Electrode with Nipple for Lf or Eaf Why Choose Us We are a forerunner in graphite electrode industry...This is our time. We are located in Datong city, near Taiyuan, Ulanqab, the bases of graphite electrode industry. We get strong support from Datong city government... We are listed company, first-class quanlity is our brand... We want to expand market, and devote ourselves to producing 700mm graphite electrodes,
Ultra-high power graphite electrodes are an important tool for electric furnace smelting. They have excellent properties such as high purity, high conductivity and high heat resistance. They are an indispensable key material in the metallurgical industry. With the development of the metallurgical industry and the increasing requirements for product quality and production efficiency, the demand for ultra-high power graphite electrodes is also growing. However, does the current price level of ultra-high power graphite electrodes on the market meet market demand? This is a question that requires in-depth analysis.
The Physical and Chemical Specification of RP Graphite Electrode
| Nomina diameter | RP | HP | UHP | ||||
| Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | Current Carrying Capacity | Current Density | ||
| in | mm | A | A/cm2 | A | A/cm2 | A | A/cm2 |
| 12 | 300 | 10000-13000 | 14-18 | 13000-17400 | 17-24 | 15000-22000 | 20-30 |
| 14 | 350 | 13500-18000 | 14-18 | 17400-24000 | 17-24 | 20000-30000 | 20-30 |
| 16 | 400 | 18000-23500 | 14-18 | 21000-31000 | 16-24 | 25000-40000 | 19-30 |
| 18 | 450 | 22000-27000 | 13-17 | 25000-40000 | 15-24 | 32000-45000 | 19-27 |
| 20 | 500 | 25000-32000 | 13-16 | 30000-48000 | 15-24 | 38000-55000 | 18-27 |
| 22 | 550 | 32000-40000 | 13-16 | 35000-55000 | 14-22 | 42000-64000 | 17-26 |
| 24 | 600 | 35000-41000 | 13-15 | 41000-61000 | 14-21 | 50000-73000 | 17-25 |
| 28 | 700 | 39000-48000 | 10-12 | 55000-82000 | 14-21 | 67000-99000 | 17-25 |
| 32 | 800 | 43000-54000 | 8-10 | / | / | / | / |
Application Of Graphite electrodes: Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steelmaking, Industrial silicon furnace or melting copper. High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
