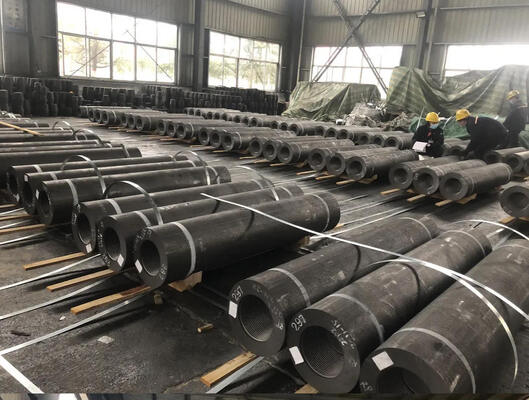

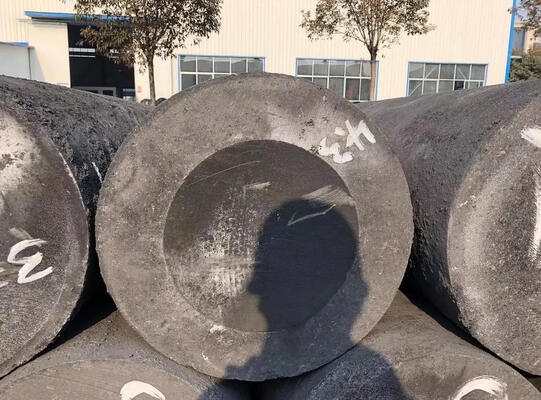

300mm-900mm UHP Graphite Electrode with 4.8-6.3 μΩ·m Resistance for Industrial Arc Furnace Melting
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
300mm-900mm UHP Graphite Electrode with 4.8-6.3 μΩ·m Resistance for Industrial Arc Furnace Melting
Description:
Premium UHP graphite electrodes featuring low electrical resistance (4.8-6.3 μΩ·m), high thermal conductivity, and anti-oxidation coating. Available in 300-900mm diameters for steelmaking and ferrous alloy production. Reduces energy loss and extends service life in industrial melting applications.
Physical & Chemical Properties
| Property | Unit | RP (300-450mm) | HP (500-800mm) | UHP (350-500mm) | UHP (550-750mm) |
|---|---|---|---|---|---|
| Specific Resistance (Electrode) | μΩ·m | 9-10.5 | 7.5 | 6.3 | 5.0-6.0 |
| Specific Resistance (Nipple) | μΩ·m | 8 | 6.3 | 5.3 | 3.8-4.5 |
| Bending Strength (Electrode) | MPa | 7 | 10 | 10.5 | 11.0-13.0 |
| Bending Strength (Nipple) | MPa | 15 | 17 | 20 | 20.0-25.0 |
| Young's Modulus (Electrode) | GPa | 9.3 | 14 | 14 | 8.0-12.0 |
| Bulk Density (Electrode) | g/cm³ | 1.53 | 1.6 | 1.66 | 1.68-1.73 |
| CTE (Electrode) | 10⁻⁶/℃ | 2.9 | 2.4 | 1.5 | 1.3-1.5 |
Key Features & Benefits
- Low electrical resistivity (4.8-6.3 μΩ·m) for efficient current flow and reduced energy loss
- High thermal conductivity for effective heat dissipation and thermal shock resistance
- Specialized anti-oxidation coating extends service life and reduces operational costs
- Robust mechanical strength withstands furnace vibrations and harsh conditions
- Ultra-low ash content (≤0.5%) ensures high purity and prevents metal contamination
- Available in 300mm to 900mm diameters with customizable lengths
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
Designed for regular power (RP), high power (HP), and ultra-high power (UHP) electric arc furnaces. Ideal for steel production, ferrous alloy manufacturing, and other high-temperature industrial melting processes requiring reliable and efficient electrode performance.
Designed for regular power (RP), high power (HP), and ultra-high power (UHP) electric arc furnaces. Ideal for steel production, ferrous alloy manufacturing, and other high-temperature industrial melting processes requiring reliable and efficient electrode performance.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
