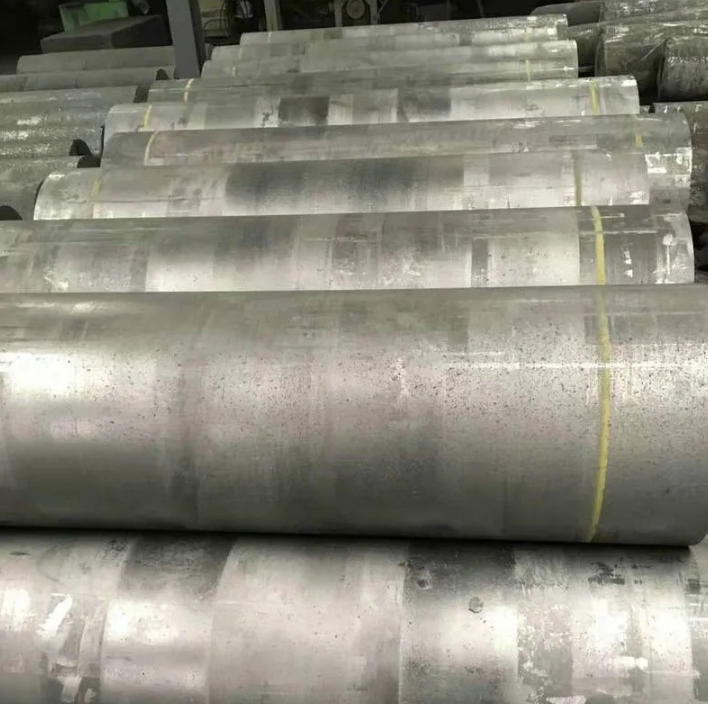

RP UHP Graphite Electrodes High Power Carbon Graphite Electrode
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

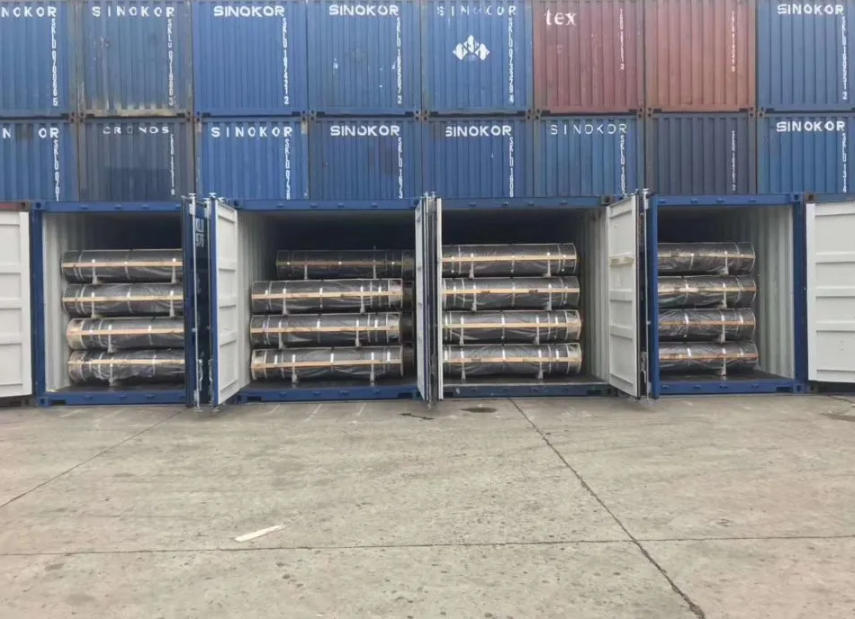

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
RP UHP Graphite Electrodes High Power Carbon Graphite Electrode
Description:
RP UHP Graphite Electrodes High Power Carbon Graphite Electrode HP400 Graphite Electrode Graphite electrodes It should also be noted that among the three high-temperature composite materials including graphite electrodes, graphite molds, and graphite crucibles, graphite materials are prone to oxidation and combustion reactions at high temperatures, resulting in a loose carbon layer on the surface of the plastic material and an increase in porosity. Graphite electrodes are
It should also be noted that among the three high-temperature composite materials including graphite electrodes, graphite molds, and graphite crucibles, graphite materials are prone to oxidation and combustion reactions at high temperatures, resulting in a loose carbon layer on the surface of the plastic material and an increase in porosity. Graphite electrodes are important carbon products made of petroleum coke and pitch coke as aggregate materials and coal tar pitch as binder. They are used in electric arc steelmaking furnaces, ore-smelting furnaces, and other equipment, and have properties such as electrical conductivity, high-temperature resistance, and thermal shock resistance. The manufacturing process is rigorous and diverse, requiring selection based on actual needs. Graphite electrodes are widely used in metallurgy, chemical industry, and other fields, emphasizing environmental protection and resource utilization, and are of great significance to industrial development.
The Physical and Chemical Specification of RP Graphite Electrode
| Item | Unit | RP | |
| φ75-φ800mm | |||
| Resistivity | Electrode | μΩm | 7.0-10.0 |
| Nipple | 4.0-4.5 | ||
| Modulus of Rupture | Electrode | Mpa | 8.0-10.0 |
| Nipple | 19.0-22.0 | ||
| Young's Modulus | Electrode | GPa | 7.0-9.3 |
| Nipple | 12.0-14.0 | ||
| Bulk Density | Electrode | g/cm3 | 1.53-1.56 |
| Nipple | 1.70-1.74 | ||
| CTE (100-600℃) | Electrode | 10-6/℃ | 2.2-2.6 |
| Nipple | 2.0-2.5 | ||
| Ash | % | 0.5 | |
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
