HP UHP Grade Carbon Electrode Graphite Electrode and Nipple
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

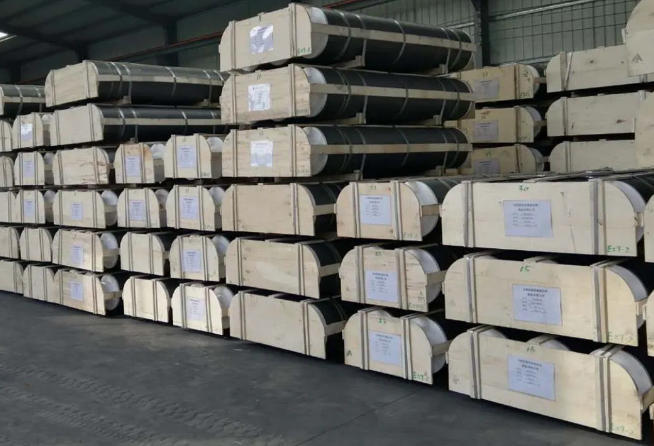

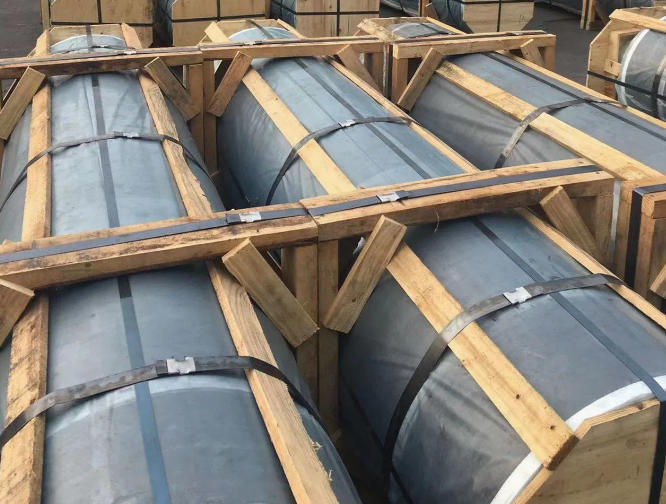

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
HP UHP Grade Carbon Electrode Graphite Electrode and Nipple
Description:
Graphite Electrode is mainly usde for steel-making in electric arc furnace, Ore-smelting Electric furnace and electric resistance furnace. Graphite electrode conduct electric current into the furnace. Electric current produces arc in the smelting
district in the electric furnace, when the temperature increase to about 2000 degree centigrade, raw material begin smelting and products manufactured.A series of graphite electrode is applicable to the common furnace and high power furnace with high pressure and short arc.
Using coal pitch as binder, the graphite electrode which is mainly made of petroleum coke and needle coke is being made through the process of calcination, compounding, kneading, pressing, baking,impregnation, graphitization and machining. It is a conductor that release electrical energy to heat and melt the charge in the form of an electric arc in an electric arc furnace, and has the characteristics of low electrical resistivity, good electrical conductivity, low ash content, uniform structure, good oxidation resistance and high mechanical strength.
Our graphite electrodes has the following feature:
1. Lower electric resistivity, good electric and heat conductivity;
2. High mechanical strength under high temperature;
3. High resistance to thermal shock and mechanical vibration;
4. Lower ash content;
5. According to the customer's feedback information, our electrodes used in EAF/LF with the pretty lower consumption per ton steel.
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
Specification
Item |
Unit |
Graphite Electrode | ||||
| RP | HP | UHP | ||||
| φ300-φ800mm | φ300-φ800mm | φ300-φ500mm | φ550-φ800mm | |||
| Typical Value | Typical Value | Typical Value | Typical Value | |||
Resistivity |
Electrode | μΩm |
7.0-10.0 | 5.8-6.6 | 4.5-5.8 | 4.6-5.8 |
| Nipple | 4.0-4.5 | 3.5-4.0 | 3.5-4.0 | 3.5-4.0 | ||
Modulus of Rupture |
Electrode | Mpa |
8.0-10.0 | 10.0-13.0 | 10.0-14.0 | 10.0-14.0 |
| Nipple | 19.0-22.0 | 20.0-23.0 | 20.0-24.0 | 22.0-26.0 | ||
Young's Modulus |
Electrode | GPa |
7.0-9.3 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
Bulk Density |
Electrode | g/cm3 |
1.53-1.56 | 1.64-1.68 | 1.68-1.74 | 1.70-1.74 |
| Nipple | 1.70-1.74 | 1.75-1.80 | 1.78-1.82 | 1.80-1.84 | ||
CTE (100-600ºC) |
Electrode | 10-6/ºC |
2.2-2.6 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 |
| Nipple | 2.0-2.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | ||
| Ash | % | 0.5 | 0.3 | 0.3 | 0.3 | |
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
