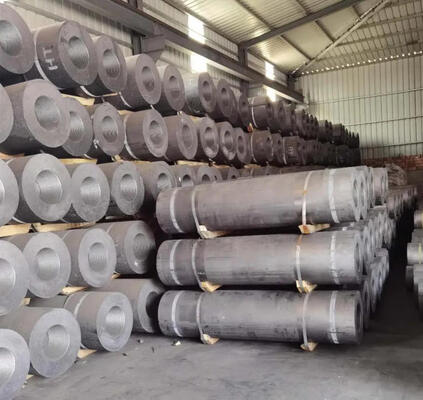

Good Quality Hot Sale UHP/HP/RP Graphite Electrode for Steel Making
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

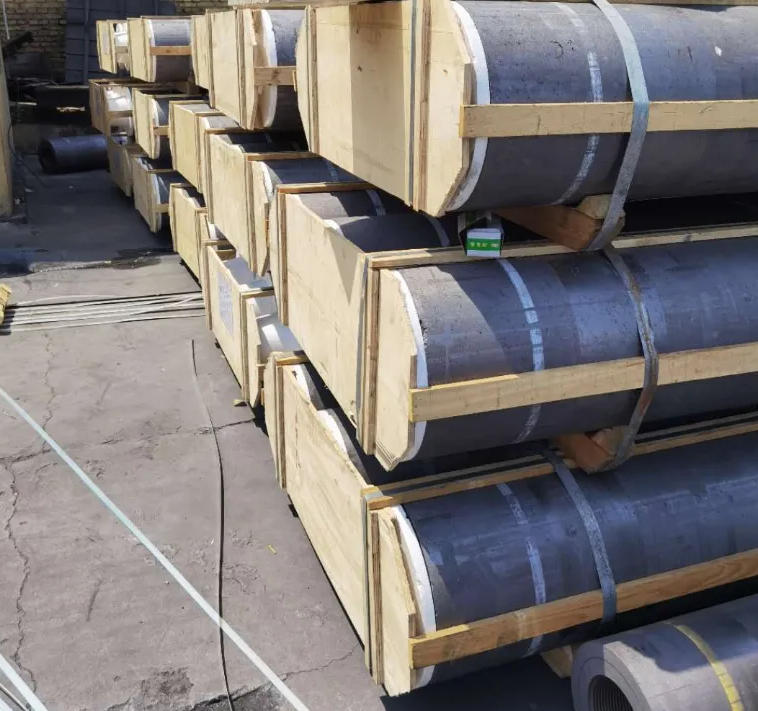

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
Good Quality Hot Sale UHP/HP/RP Graphite Electrode for Steel Making
Description:
Graphite electrode is made from the domestic first class petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The Graphite electrodes include: regular power, high power, ultra high power and square electrode. The range of diameters covers from 200mm to 800mm. Our products own the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
CNBM and its partner have 4 production bases and the annual production capacity of graphite electrodes is 60,000 MT.
CNBM and its partner have 4 production bases and the annual production capacity of graphite electrodes is 60,000 MT.
Specification
| Item | Unit | RP | HP | UHP | ||||
| 250-400 | 450-800 | 300-400 | 450-700 | 300-400 | 450-700 | |||
| Electric Resistivity | Electrode | μΩ.m | 7.5-8.6 | 7.5-8.8 | 5.5-6.8 | 5.5-7.0 | 4.6-6.0 | 4.8-6.2 |
| Nipple | 4.5-5.5 | 4.0-5.0 | 3.5-4.5 | |||||
| Bending Strength | Electrode | MPa | ≥8.0 | ≥11.0 | ≥11.0 | |||
| Nipple | ≥15.0 | ≥16.0 | ≥18.0 | |||||
| Elastic Modulus | Electrode | GPa | ≤9.0 | ≤11.0 | ≤13.0 | |||
| Nipple | ≤13.0 | ≤14.0 | ≤15.0 | |||||
| Bulk Density | Electrode | g/cm3 | 1.55-1.65 | 1.63-1.73 | 1.65-1.75 | |||
| Nipple | 1.70-1.75 | 1.73-1.80 | 1.75-1.82 | |||||
| Ash | Electrode | % | ≤0.3 | |||||
| Nipple | ||||||||
| CTE(100-600)ºC | Electrode | 10-6/ºC | 2.00-2.50 | 1.80-2.00 | 1.30-1.50 | |||
| Nipple | 1.50-1.80 | 1.50-1.80 | 1.20-1.40 | |||||
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
