Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting

  • Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting
  • Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting
Place of Origin China
Brand Name Chaoyo
Certification QA/QC
Model Number graphite electrode
Minimum Order Quantity 25tons

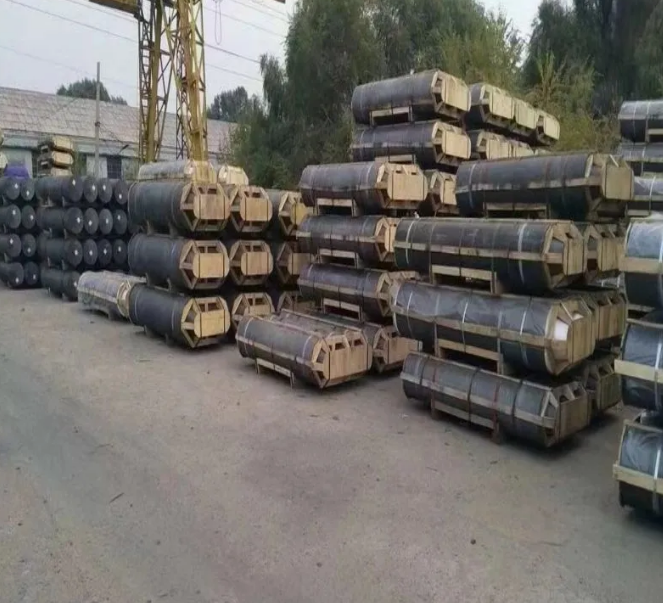

Packaging Details wooden pallet
Delivery Time 10-15days
Payment Terms TT/LC
Supply Ability 3000 Metric Ton/Metric Tons per Month
Product Details
Application EAF / LF Diameter 550mm
Length 1800mm Length Resistance (μΩ.m) ≤6.5
Apparent Density (g/cm³ ) ≥1.65 Thermal Expansion ≤2.4
Flexural Strength (N/㎡) ≥10.5 Type Electrode Block
Grade UHP (Ultra High Power) Connect 4TPI
Leave a Message
Product Description

Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting​



Description:

Graphite electrodes are used mainly in ladle furnaces, electric-arc furnace steelmaking, Yellow phosphorus furnace, Industrial silicon furnace, or melting copper. They are presently the only products available that have high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment. High-Quality Needle Coke in HP&UHP graphite electrode, ensures the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.


Explore the diverse grades available within our electrode portfolio, including:

· HP - High Power

· HD - High Density

· UHP - Ultra High Power

· SHP - Super High Power

Graphite electrodes are indispensable in electric arc furnaces (EAF), offering unmatched electrical conductivity and resilience against the intense heat levels inherent in these processes. They are also crucial for refining steel in ladle furnaces and other smelting operations. Our electrodes come in four distinct types: RP Graphite electrodes, HP Graphite electrodes, SHP Graphite electrodes, and UHP Graphite electrodes.

Specification

Items
Unit
Nominal Diameter
YB/T4090
YLD-UHP
350400
450500
350400
400500
550600
Resistivity
Electrode
μΩm
<=6.2
<=6.3
<=6.0
<=6.0
<=5.8
Connector
<=5.3
<=5.3
<=4.2
<=4.2
<=4.0
Flexural Strength
Electrode
Mpa
>=10.5
>=10.5
>=11.5
>=11.5
>=11.0
Connector
<=20.0
<=20.0
<=21.0
<=21.0
<=23.0
Elastic Modulus
Electrode
Gpa
<=14.0
<=14.0
<=14.0
<=14.0
<=14.0
Connector
<=20.0
<=20.0
<=20.0
<=20.0
<=22.0
Bulk Density
Electrode
g/cm3
>=1.67
>=1.66
>=1.71
>=1.70
>=1.68
Connector
>=1.74
>=1.75
>=1.76
>=1.78
>=1.80
Ash
Electrode
%
<=0.5
<=0.5
<=0.3
<=0.3
<=0.3
Connector
Thermal Expansion Coefficient CTE
Electrode
10-6/ºC
<=1.5
<=1.5
<=1.4
<=1.4
<=1.4
Connector
<=1.4
<=1.4
<=1.2
<=1.2
<=1.2
True Density
Electrode
g/cm3
......
......





Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple

Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting 0



Product Advantage

* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.



Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting 1



Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting 2



Production Application:

  1. Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
  2. Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
  3. Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
  4. Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
  5. Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis



Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting 3



Ultra High Power 700mm Graphite Electrode for Eaf Furnace Steel Smelting 4
