Product Details:
Payment & Shipping Terms:
|
| Application: | EAF / LF | Diameter: | 550mm |
|---|---|---|---|
| Length: | 1800mm Length | Resistance (μΩ.m): | ≤6.5 |
| Apparent Density (g/cm³ ): | ≥1.65 | Thermal Expansion: | ≤2.4 |
| Flexural Strength (N/㎡): | ≥10.5 | Type: | Electrode Block |
| Grade: | UHP (Ultra High Power) | Connect: | 4TPI |

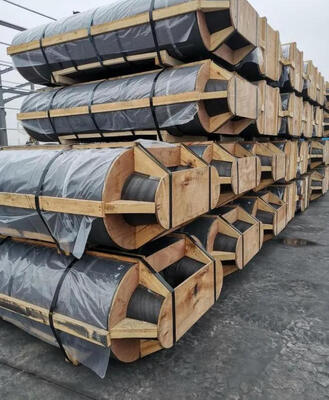

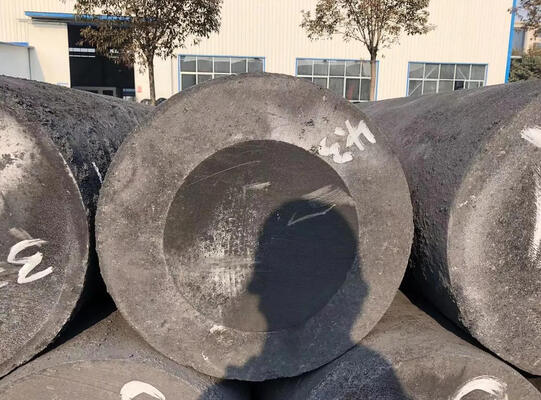

High-Power Graphite Electrode for Corundum Factory and Graphite Electrode for Export HP Graphite Electrode
Description:
Graphite electrode is mainly made of petroleum coke and needle coke as raw materials and coal tar pitch as binder through calcination, proportioning, kneading, pressing, roasting, graphitization and machining. It is a conductor that releases electric energy in the form of electric arc to heat and melt the charge in the electric arc furnace. According to its quality index, it can be divided into ordinary power, high power and ultra-high power.
The graphite electrode comprises:
(1) Regular power graphite electrode( RP grade Graphite Electrode) . Graphite electrode with current density less than 17a / cm2 is allowed to be used in common power electric furnaces for steelmaking, silicon smelting and yellow phosphorus smelting.
(2) Oxidation resistant coating graphite electrode. A graphite electrode coated with an anti-oxidation protective layer (graphite electrode anti oxidant). The formation of both conductive and high temperature oxidation resistant protective layer can reduce the electrode consumption (19% ~ 50%), prolong the service life of the electrode (22% ~ 60%), and reduce the electric energy consumption of the electrode. The popularization and application of this technology can bring such economic and social effects as follows: 1. The unit consumption of graphite electrode is less, and the production cost is reduced to a certain extent. For example, according to the consumption of 35 graphite electrodes per week and 165 refining heats of LF refining furnace in a steel-making plant without shutdown in the whole year, 373 (153 tons) electrodes can be saved every year by using graphite electrode oxidation resistance technology, and RMB 2585700 can be saved by RMB 16900 per ton of ultra-high power electrode per year. 2 The graphite electrode consumes less electricity, saves the unit electricity consumption of steelmaking, saves the production cost, saves energy! 3. Because the graphite electrode is replaced less times, the labor amount and risk coefficient of operators are reduced, and the production efficiency is improved. 4 Graphite electrode is a high consumption and high pollution product, which has a very important social significance in the days of promoting energy conservation, emission reduction and environmental protection. This technology is still in the stage of research and development in China, and some domestic manufacturers have begun to produce it. It is widely used in Japan and other developed countries. At present, there are also companies that import the anti-oxidation protective coating in China.
(3) High power graphite electrode (HP grade Graphite Electrode). Graphite electrode with current density of 18-25a / cm2 is allowed to be used in high power electric arc furnace for steelmaking.
(4) Ultra high power graphite electrode( UHP grade Graphite Electrode). Graphite electrode with current density greater than 25A / cm2 is allowed. It is mainly used in ultra high power EAF.
Specification
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Product Advantage
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
