Graphite Electrode with Low Ash Content Needle Coke Based EAF LF

China Graphite Electrode with Low Ash Content Needle Coke Based EAF LF supplier
Graphite Electrode with Low Ash Content Needle Coke Based EAF LF supplier Graphite Electrode with Low Ash Content Needle Coke Based EAF LF supplier

Large Image :  Graphite Electrode with Low Ash Content Needle Coke Based EAF LF

Product Details:

Place of Origin: China
Brand Name: Chaoyo
Certification: QA/QC
Model Number: graphite electrode

Payment & Shipping Terms:

Minimum Order Quantity: 25tons
Packaging Details: wooden pallet
Delivery Time: 10-15days
Payment Terms: TT/LC
Supply Ability: 3000 Metric Ton/Metric Tons per Month
Contact Now
Detailed Product Description
Application: EAF / LF Diameter: 550mm
Length: 1800mm Length Resistance (μΩ.m): ≤6.5
Apparent Density (g/cm³ ): ≥1.65 Thermal Expansion: ≤2.4
Flexural Strength (N/㎡): ≥10.5 Type: Electrode Block
Grade: UHP (Ultra High Power) Connect: 4TPI

Graphite Electrode with Low Ash Content Needle Coke Based EAF LF​



Description:

Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.

* High density, high temperature resistance, high mechanical strength and strong chemical stability.

* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.

Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.



Specification



RP Graphite Electrodes
Regular Power (RP) Graphite Electrodes are suitable for all kinds of AC/DC Regular Power Electric Arc Furnaces, Resistance Furnaces, Submerged Electric Furnaces for smelting all kinds of alloy steel, metal, non-metal, etc.
Nominal Diameter(mm)
Resistivity
Density
Flexure Strength
Elastic Modulus
Ash Content
CTE
Current Load
Current Density
75
8
1.6
8.5
8
0.3
2.8
1000-1400
22-31
100
8
1.6
8.5
8
0.3
2.8
1500-2400
19-30
130
8
1.6
8.5
8
0.3
2.8
2200-3400
17-26
150
8
1.6
8.5
8
0.3
2.8
3000-4500
16-25
200
8
1.6
8.5
8
0.3
2.8
5000-6900
15-21
250
8
1.6
8.5
8
0.3
2.8
7000-10000
14-20
300
8
1.6
8.5
8
0.3
2.8
10000-13000
14-18
350
8
1.6
7.5
8
0.3
2.8
13500-18000
14-18
400
8
1.6
7.5
8
0.3
2.8
18000-23500
14-18
450
8
1.6
7.5
8
0.3
2.8
22000-27000
13-17
500
8
1.6
7
8
0.3
2.8
25000-32000
13-16
550
8
1.6
7
8
0.3
2.8
28000-34000
12-14
600
8
1.6
7
8
0.3
2.8
30000-36000
11-13
650
8
1.6
7
8
0.3
2.8
32000-39000
10-12
700
8
1.6
7
8
0.3
2.8
34000-42000
9-11
HP Graphite Electrodes
High Power (HP) Graphite Electrodes are widely used in various DC/AC high power electric arc furnaces, ladle refining furnaces for smelting various alloy steels, etc.
Nominal Diameter(mm)
Resistivity
Density
Flexure Strength
Elastic Modulus
Ash Content
CTE
Current Load
Current Density
300
6
1.67-1.73
12
10.5
0.3
2
13000-17400
17-24
350
6
1.67-1.73
12
10.5
0.3
2
17400-24000
17-24
400
6
1.67-1.73
12
10.5
0.3
2
21000-31000
16-24
450
6
1.67-1.73
12
10.5
0.3
2
25000-40000
15-24
500
6
1.67-1.73
12
10.5
0.3
2
30000-48000
15-24
550
6
1.67-1.73
12
10.5
0.3
2
34000-53000
14-22
600
6
1.67-1.73
12
10.5
0.3
2
38000-58000
13-21
650
6.2
1.67-1.73
12
10.5
0.3
2
41000-65000
12-20
700
6.2
1.67-1.73
12
10.5
0.3
2
45000-72000
12-19

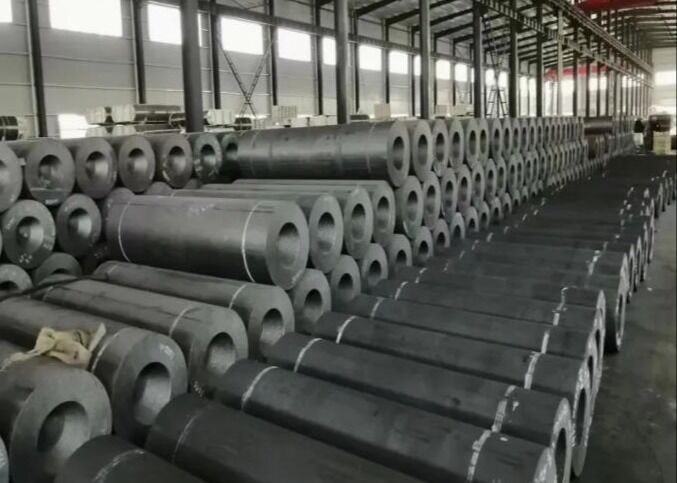

Graphite Electrode with Low Ash Content Needle Coke Based EAF LF 0

Application

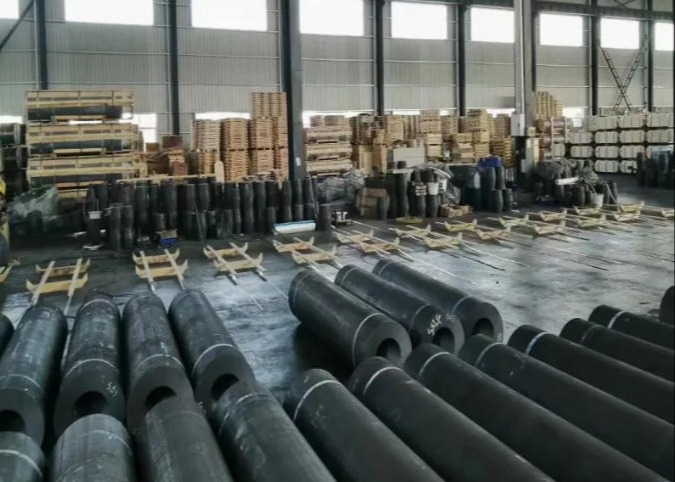

Graphite Electrode with Low Ash Content Needle Coke Based EAF LF 1



Graphite Electrode with Low Ash Content Needle Coke Based EAF LF 2
