225X1500mm HP Grade Graphite Electrode Electric Arc Furnace Graphite Electrodes
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |

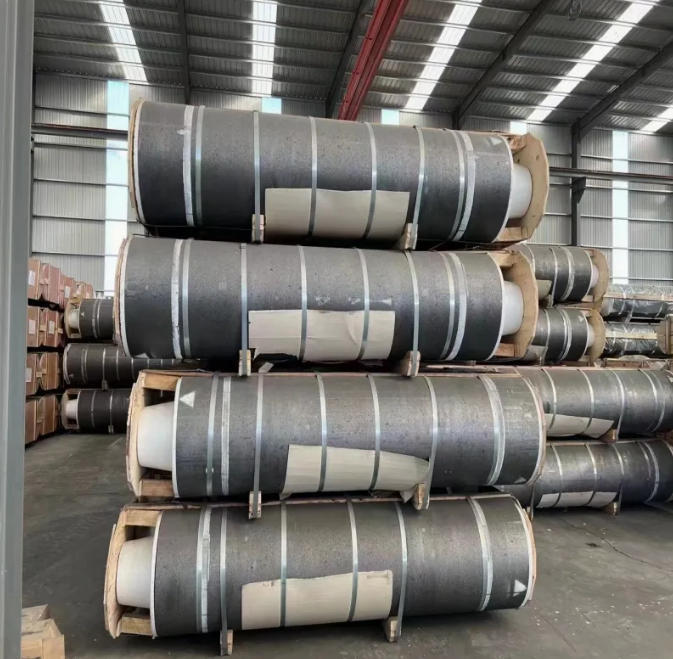

| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
| Application | EAF / LF | Diameter | 550mm |
|---|---|---|---|
| Length | 1800mm Length | Resistance (μΩ.m) | ≤6.5 |
| Apparent Density (g/cm³ ) | ≥1.65 | Thermal Expansion | ≤2.4 |
| Flexural Strength (N/㎡) | ≥10.5 | Type | Electrode Block |
| Grade | UHP (Ultra High Power) | Connect | 4TPI |
Product Description
225X1500mm HP Grade Graphite Electrode Electric Arc Furnace Graphite Electrodes
Description:
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
Specification
| ITEM | Regular power | High Power | Ultra high power | ||||
| UNIT | 3-24inch | 4-24inch | 14-24inch | 12-20inch | 22-28inch | ||
| φ75-600mm | φ100-300mm | φ350-600mm | φ300-500mm | φ550-700mm | |||
| Resistivity | Electrode | μΩ*m | 7.0-9.0 | 5.8-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 |
| Nipple | 4.0-4.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | ||
| Bending strength | Electrode | MPA | 8.0-12.0 | 9.0-12.0 | 10.0-14.0 | 10.0-15.0 | 12.0-16.0 |
| Nipple | 19.0-22.0 | 16.0-20.0 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | ||
| Elastic Modulus | Electrode | GPA | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
| Bulk density | Electrode | g/m3 | 1.60-1.65 | 1.68-1.7 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.8-1.85 | ||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 |
| Nipple | |||||||
| CTE (100-600ºC) |
Electrode | 10-6/ºC | 2.0-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 |
| Nipple | 1.8-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | ||
