Natural Flake Graphite, High Purity Flake Graphite

I'm Online Chat Now

Natural Flake Graphite, High Purity Flake Graphite

China Natural Flake Graphite, High Purity Flake Graphite supplier

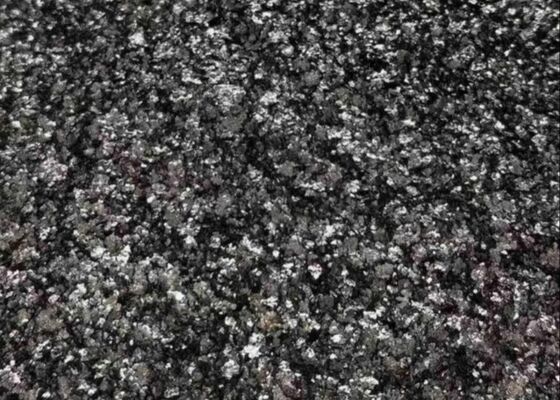

Large Image :  Natural Flake Graphite, High Purity Flake Graphite

Product Details:

Place of Origin: China
Brand Name: Haisen
Certification: haisen carbon
Model Number: Haisen carbon

Payment & Shipping Terms:

Price: USD1700/MT

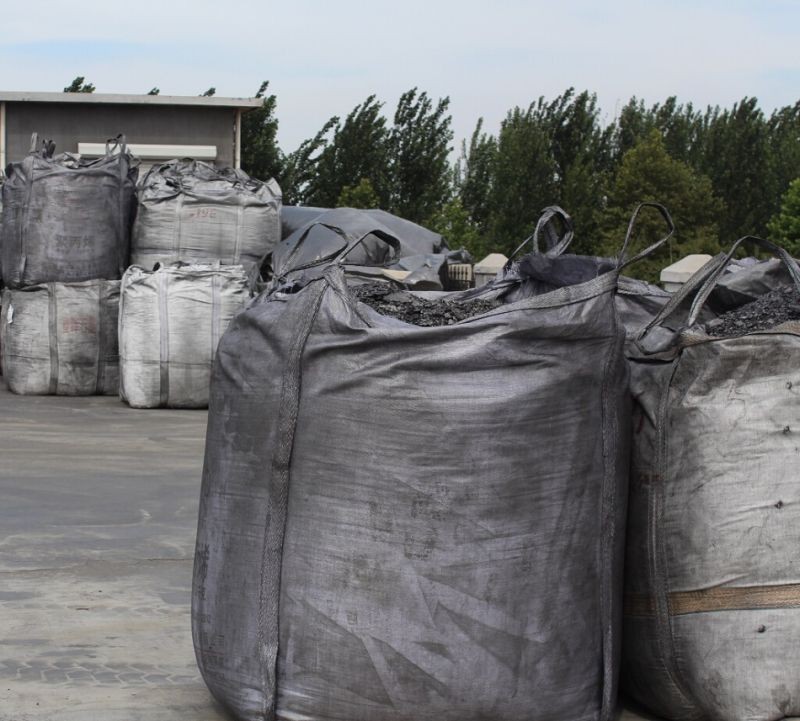

Packaging Details: pallets
Delivery Time: 10-15days
Payment Terms: TT/LC
Supply Ability: 100MT/weeks
Minimum Order Quantity: 25MT
Detailed Product Description

High quality graphite comes from high quality primary ore and advanced processing methods: Multistep grinding, repeated flotation, chemical purification, electrified purification and super fine crushing. We can manufacture nature flake graphite ranging from 500 micron to 0.5 micron and containing 80%-99.99% carbon. If clients have special requirements for moisture content, ash content, substance above or under the sieve, trace element content and particle distribution, we can supply all these special products.

Product name: High purity graphite, high carbon graphite, intermediate carbon graphite

Specification: Particle size 0.5mm-1um, carbon content 80-99.99%

Property: Scale is thin, flexible and crystallized completely with excellent physical and chemical properties such as good temperature resistance, self-lubrication, conductibility, heat resistance, shake resistance, and erosion resistance.

Use: Widely applied to high quality fire resistance material and coating of metallurgy industry, hot working material stabilizer of military industry, lead of light industry, carbon brush of electrical industry, electrode of battery industry, and catalyzer and additive of fertilizer industry. After further process, flake graphite can be made into the following high-tech products such as graphite colloidal graphite, graphite compacting material and composite material, graphite products, and graphite anti-friction additive, which are becoming important nonmetal mineral materials in every industry.
 Brand No.  Fixed Carbon (≥%) Volatile constituent(≤%)  Moisture(≤%)  Residues after sieving(%)  Main use
 LC500-99.9  99.90  1.00  0.20  ≥80.0  Flexible graphite sealing material (sealant)
 LC300-99.9  99.90  1.00  0.20  ≥80.0  Flexible graphite sealing material (sealant)
 LC180-99.9  99.90  1.00  0.20  ≥80.0  Flexible graphite sealing material (sealant)
 LC(-)150-99.9  99.90  1.00  0.20  ≤20.0  Lubricant base material
 LC(-)75-99.9  99.90  1.00  0.20  ≤20.0  Lubricant base material
 LC(-)45-99.9  99.90  1.00  0.20  ≤20.0  Lubricant base material
 LC(-)150-99.99  99.99  1.00  0.20  ≤20.0  Lubricant base material
 LG500-99/LG300-99/LG180-99/LG150-99/LG125-99/LG100-99  99.00  1.00  0.50  ≥75.0  Filler
 LG(-)150-99/ LG(-)125-99/ LG(-)100-99/ LG(-)75-99/ LG(-)45-99   99.00  1.00  0.50  ≤20.0 Lubricant, base material, coating
 LG500-98/LG300-98/LG180-98/LG150-98/LG125-98/LG100-98  98.00  1.00   0.50   ≥75.0  Lubricant, base material, coating
  LG(-)150-98/ LG(-)125-98/ LG(-)100-98/ LG(-)75-98/ LG(-)45-98  98.00  1.00    0.50   ≤20.0  Lubricant, base material, coating
 LG500-97/LG300-97/LG180-97/LG150-97/LG125-97/LG100-97  97.00  1.20  0.50    ≥75.0  Lubricant, base material, brush coating
  LG(-)150-97/ LG(-)125-97/ LG(-)100-97/ LG(-)75-97/ LG(-)45-97  97.00   1.20  0.50  ≤20.0  Lubricant, base material, brush coating
 LG500-96/LG300-96/LG180-96/LG150-96/LG125-96/LG100-96  96.00  1.20  0.50   ≥75.0  Fire resistance material,electrical carbon products,raw materal for battery and pencil
  LG(-)150-96/ LG(-)125-96/ LG(-)100-96/ LG(-)75-96/ LG(-)45-96   96.00   1.20   0.50   ≤20.0  Fire resistance material,electrical carbon products,raw materal for battery and pencil
 LG500-95/LG300-95/LG180-95/LG150-95/LG125-95/LG100-95  95.00   1.20   0.50  ≥75.0  Electrial carbon products
 LG(-)150-95/ LG(-)125-95/ LG(-)100-95/ LG(-)75-95/ LG(-)45-95  95.00   1.20  0.50    ≤20.0  Fire resistance material,electrical carbon products,raw materal for battery and pencil
 LG500-94/LG300-94/LG180-94/LG150-94/LG125-94/LG100-94  94.00   1.20  0.50   ≥75.0  Electrial carbon products
 LG(-)150-94/ LG(-)125-94/ LG(-)100-94/ LG(-)75-94/ LG(-)45-94  94.00  1.20  0.50     ≤20.0  Electrial carbon products
 LZ500-93/LZ300-93/LZ180-93/LZ150-93/LZ125-93/LZ100-93  93.00  1.50  1.00   ≥75.0  Crucible, fire resistance material, dye
  LZ(-)150-93/ LZ(-)125-93/ LZ(-)100-93/ LZ(-)75-93/ LZ(-)45-93  93.00   1.50   1.00      ≤20.0  Crucible, fire resistance material, dye
 LZ500-92/LZ300-92/LZ180-92/LZ150-92/LZ125-92/LZ100-92  92.00  1.50    1.00    ≥75.0  Crucible, fire resistance material, dye
  LZ(-)150-92/ LZ(-)125-92/ LZ(-)100-92/ LZ(-)75-92/ LZ(-)45-92   92.00  1.50   1.00   ≤20.0  Crucible, fire resistance material, dye
  LZ500-91/LZ300-91/LZ180-91/LZ150-91/LZ125-91/LZ100-91  91.00  1.50   1.00  ≥75.0  Crucible, fire resistance material, dye
 LZ(-)150-91/ LZ(-)125-91/ LZ(-)100-91/ LZ(-)75-91/ LZ(-)45-91  91.00   1.50  1.00   ≤20.0  Crucible, fire resistance material, dye
 LZ500-90/LZ300-90/LZ180-90/LZ150-90/LZ125-90/LZ100-90  90.00  2.00  1.00  ≥75.0  Crucible, fire resistance material
  LZ(-)150-90/ LZ(-)125-90/ LZ(-)100-90/ LZ(-)75-90/ LZ(-)45-90   90.00  2.00   1.00  ≤20.0  Raw material for pencil and battery
 LZ500-89/LZ300-89/LZ180-89/LZ150-89/LZ125-89/LZ100-89  89.00   2.00   1.00  ≥75.0  Crucible, fire resistance material
 LZ(-)150-89/ LZ(-)125-89/ LZ(-)100-89/ LZ(-)75-89/ LZ(-)45-89  89.00   2.00   1.00   ≤20.0  Raw material for pencil and battery
LZ500-88/LZ300-88/LZ180-88/LZ150-88/LZ125-88/LZ100-88  88.00  2.00  1.00  ≥75.0  Crucible, fire resistance material
 LZ(-)150-88/ LZ(-)125-88/ LZ(-)100-88/ LZ(-)75-88/ LZ(-)45-88  88.00  2.00   1.00   ≤20.0  Raw material for pencil and battery
 LZ500-87/LZ300-87/LZ180-87/LZ150-87/LZ125-87/LZ100-87  87.00  2.50   1.00   ≥75.0  Crucible, fire resistance material
  LZ(-)150-87/ LZ(-)125-87/ LZ(-)100-87/ LZ(-)75-87/ LZ(-)45-87   87.00   2.50  1.00   ≤20.0  Founding coating
 LZ500-86/LZ300-86/LZ180-86/LZ150-86/LZ125-86/LZ100-86  86.00    2.50  1.00  ≥75.0  fire resistance material
 LZ(-)150-86/ LZ(-)125-86/ LZ(-)100-86/ LZ(-)75-86/ LZ(-)45-86   86.00  2.50  1.00  ≤20.0  Founding coating
  LZ500-85/LZ300-85/LZ180-85/LZ150-85/LZ125-85/LZ100-85  85.00  2.50  1.00  ≥75.0  Crucible, fire resistance material
 LZ(-)150-85/ LZ(-)125-85/ LZ(-)100-85/ LZ(-)75-85/ LZ(-)45-85   85.00   2.50  1.00   ≤20.0  Founding coating
 LZ500-83/LZ300-83/LZ180-83/LZ150-83/LZ125-83/LZ100-83  83.00  3.00  1.00  ≥75.0  Fire resistance material
 LZ(-)150-83/ LZ(-)125-83/ LZ(-)100-83/ LZ(-)75-83/ LZ(-)45-83  83.00  3.00   1.00  ≤20.0  Founding coating
  LZ500-80/LZ300-80/LZ180-80/LZ150-80/LZ125-80/LZ100-80  80.00  3.00   1.00  ≥75.0  Fire resistance material
LZ(-)150-80/ LZ(-)125-80/ LZ(-)100-80/ LZ(-)75-80/ LZ(-)45-80  80.00   3.00  1.00   ≤20.0  Founding coating
