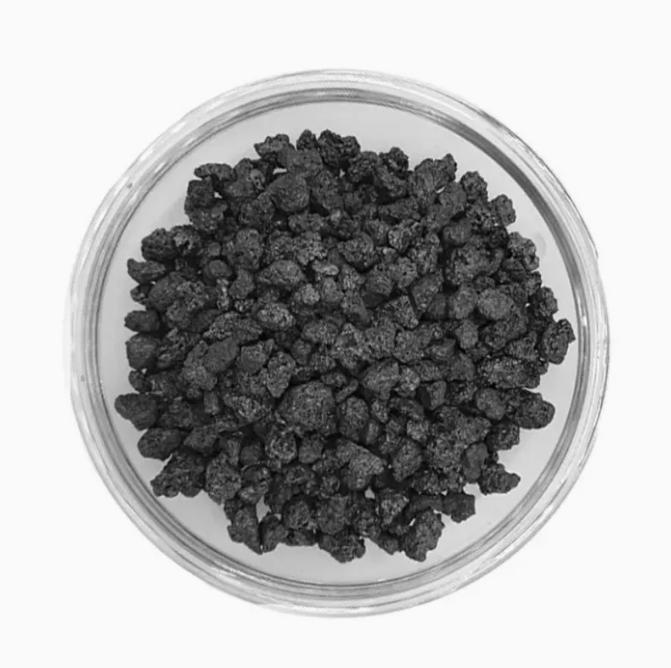

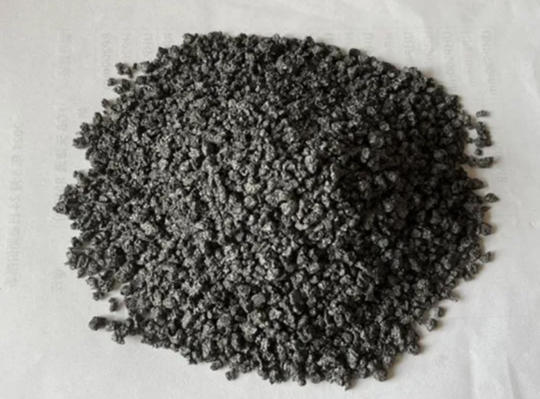

Graphite Electrode Scraps for Iron Foundry

Place of Origin China
Brand Name Chaoyo
Certification sgs
Model Number graphite scraps
Minimum Order Quantity 10tons
Packaging Details bulk
Delivery Time 15-18days
Payment Terms L/C, T/T
Supply Ability 100tons
Product Details
Model NO. 1-5mm Carbon Content High-Carbon
F.C Min98.5% Ash Max0.5%
Leave a Message
Product Description

Graphite Electrode Scraps for Iron Foundry



Product Description

High Carbon 99% GPC Synthetic Graphite Artificial Graphite Electrode Powder Graphitized Petroleum Coke is made from high quality green petroleum coke,which is under the high temperature process at 2800℃,GPC has the characteristics of high fixed carbon content,low sulfur content,low nitrogen content,high absorb rate.It’s widely used for high quality steel products, special steel products and the relevant metallurgy & foundry industries. Also,it can be used as additives for



F.C Sulphur(Max) Volatile Matter Ash(Max) N Max Moisture(Max)
99 0.03 0.5 0.5 100pm 0.5
98.5 0.05 0.7 0.7 200ppm 0.5
98 0.05 0.7 1 300ppm 0.5
97 0.05-0.15 0.7 2 500ppm 0.5


The use of high purity graphite in the field of industrial production has excellent performance. High purity graphite is used in conductive, lubrication, metallurgy, and other industrial production fields. High purity graphite production, from the beginning of the raw materials, should be strictly controlled the content of impurities, choose low ash raw materials, and in the production process to prevent the increase of pollutants as far as possible. However, the reduction of contaminants to the degree required is primarily in the graphite chemical sequence. Graphitization occurs at high temperatures, where the oxides of many impurity elements will decompose and evaporate. The higher the graphitization temperature is, the more impurities are discharged, the higher the purity of the high purity graphite products are produced. The high purity graphite is used to make use of its excellent conductivity, lubrication, high-temperature resistance, etc.





Applications

1.Steel Foundry: carburant/graphite electrode/refractory material
2.Industry Field: brake pad/seal ring/friction plate/heat exchanger/lubricity
3.Battery Production: alkaline battery cathode/lithium ion battery cathode
4.Metallurgy:casting for glass production/graphite crucible/ anodes for the aluminium, titanium smelting industry
5.Others:glass sheet/pencil lead/clay bricks/conductive coating




Graphite Electrode Scraps for Iron Foundry 0

Graphite Electrode Scraps for Iron Foundry 1

Application:

1.Steel Foundry: carburant/graphite electrode/refractory material

2.Industry Field: brake pad/seal ring/friction plate/heat exchanger/lubricity

3.Battery Production: alkaline battery cathode/lithium ion battery cathode

4.Metallurgy:casting for glass production/graphite crucible/ anodes for the aluminium, titanium smelting industry

5.Others:glass sheet/pencil lead/clay bricks/conductive coating
