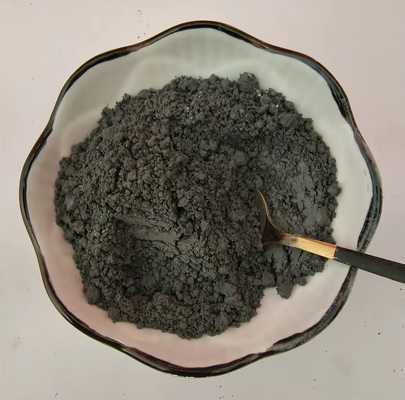

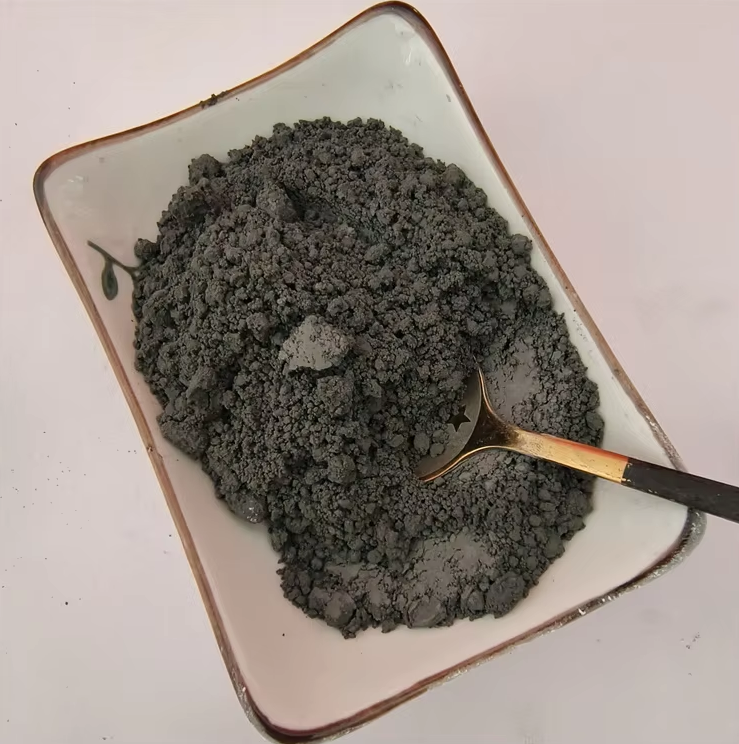

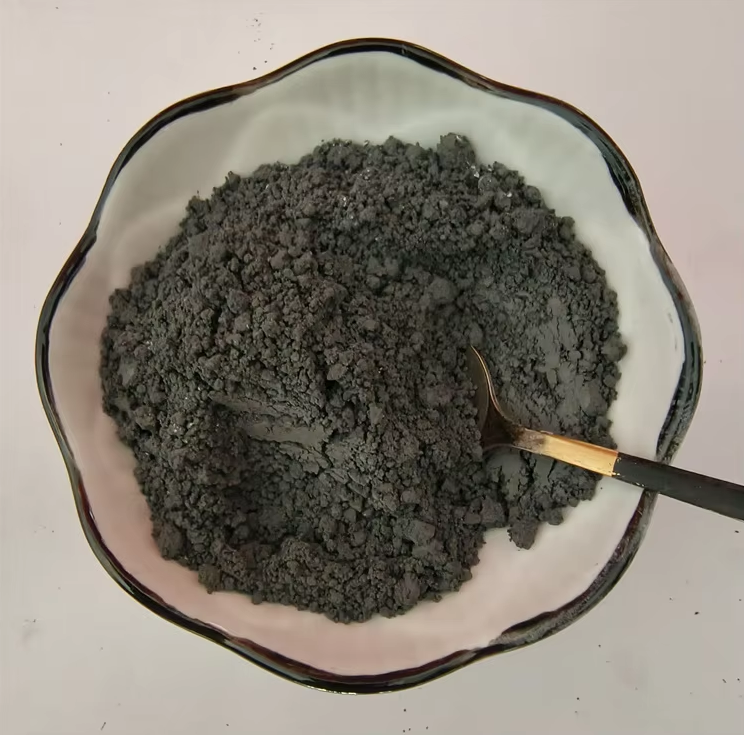

Boron Carbide F230 For Sapphire BACK-Grinding
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | Chaoyo carbon |
| Model Number | Chaoyo carbon |
| Minimum Order Quantity | 1ton |
| Price | USD20000/MT |
| Packaging Details | pallets |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 10MT/weeks |
Product Details
| Percent | 99% Carbon | Electricalconductivity | High |
|---|---|---|---|
| Appearance | Fine Powder | Satau | Flake Graphite |
| Purity Level | High Purity | Ashcontent | <0.1% |
| Adsorption Properties | Carbon Tetrachloride Adsorption Value | Expansion Ratio | Customisation |
| Phvalue | 7-8 | Pore Diameter | Microporous |
| Transport Package | 25kgs For One Bag | Thermalconductivity | 120 W/mK |
| Sample | Free | Size | As Requested |
| Shape | O-Ring |
Product Description
Boron Carbide F230 For Sapphire BACK-Grinding
Boron Carbide Powder (B4C) a black crystal powder, is one of the hardest Man-Made materials. Its hardness with Mohs hardness 9.36 and microscopic hardness 5400-6300kg/mm2 is only near upon diamond. Its density is 2.52g/cm3 and melting point is 2450ºC. It has excellent abrasion resistance and large neutron-absorbing cross section. The boron carbide possesses properties of endurance hi/low temperature, no reaction with either acids or alkalis, high grinding efficiency, no magnetism. It is a good replacement of diamond. Boron carbide also possesses the special properties of light quality, neutron absorbing, semi-conductivity, etc., so it is widely used in machinery, electronics, instrumentation, metallurgy, national defense, armed forces, nuclear, aviation industry, and also used as abrasives, classic refractory and specific welding materials, human protection materials and so on.
Boron carbide is widely applied as follows: boriding refractory, ion transfusion, film layer as well as grinding, polishing, lapping, drilling hard metal alloys, sapphire, watches, jewels, etc. Meanwhile, it is main material for the wear-resisting parts, precise meter-age element, sandblasting nozzle, precise spray nozzle, sealed washer, smelting boron steel, boron alloy, etc.
Boron carbide has showed many better properties of physics and chemistry in the hi-science/technology fields.
Hard, black, shiny crystals. Hardness is lower than industrial diamond, but higher than silicon carbide. Fragility is lower than most pottery. Has a large thermal energy neutron capture cross section. Strong chemical resistance. Not subject to the attack of hot hydrogen fluoride and nitric acid. Soluble in molten alkali, insoluble in water and acid.
| Physical Characteristics | ||||||
| Item | Crystal system | Crystal color | Density | Melting point | Mohs hardness | Micro hardness |
| Boron carbide | Hexagonal | Black | 2.52g/cm3 | 2450ºC | 9.36 | 5400-6300kg/mm2 |
| Chemical Composition | ||||||
| Grain sizes | Chemical composition(%,by weight) | |||||
| B4C | T.B | F.B | T.C | F.C | Fe2O3 | |
| F4-F90 | ≥95 | ≥76 | ≤0.3 | 18-21 | ≤1.5 | ≤0.3 |
| F100-F220 | ≥96.5 | ≥76 | ≤0.3 | 18-21 | ≤1.6 | ≤0.3 |
| F230-F320 | ≥96 | 77-81 | ≤0.4 | 18-21 | ≤1.5 | ≤0.2 |
| F360-F500 | ≥95 | 76.5-80 | ≤0.4 | 18-21 | ≤1.8 | ≤0.2 |
| F600-F800 | ≥94 | 76-80 | ≤0.45 | 18-21 | ≤2.0 | ≤0.25 |
| F1000-F1200 | ≥93.5 | 76-79 | ≤0.5 | 18-21 | ≤2.5 | ≤0.3 |
Note: For more grain sizes, welcome to contact us. Special requirements can be satisfied through discussion.
Common Sizes/1
Common sizes/2
Packaging & Shipping:
1. Usually PLASTIC BAG/PAPER BAG+ CARTON BOX/1MT PALLET
2. Special requirements according to customers' requirements
3. Free samples or Sample orders usually shipped by Express like FedEx/TNT/UPS/EMS/DHL...
Introduction to the Wide Applications of Boron Carbide B4C
Boron Carbide, molecular formula B4C, is one of the three hardest materials known (the other two are diamond and CBN cubic boron nitride) and commonly used in tank armor, bulletproof clothing, and many industrial products.
Boron Carbide can absorb large amounts of neutrons without forming any radioactive isotopes, so it's an ideal neutron absorber for nuclear power plants, and can be used to control the rate of nuclear fission. Boron Carbide is mainly made as a controlled rod in a field, but sometimes it is made into the powder to increase the surface area. It has many advantages including low density, high strength, high temperature stability and good chemical stability, widely used in wear resistant parts, ceramic reinforcement, especially in light armor, reactor neutron absorbers, etc.
In addition, boron carbide is easier to manufacture and less costly than diamonds and cubic boron nitride(CBN), so it can be used more widely. It can replace expensive diamonds in some applications and is commonly used in grinding, lapping, drilling, etc.
Control Nuclear Fission
Boron carbide can absorb large amounts of neutrons without forming any radioactive isotopes, which makes it an ideal neutron absorber for nuclear power plants, and neutron absorbers are mainly used to control the rate of nuclear fission. Boron Carbide is mainly made as a controlled rod in a field, but sometimes it is made into the powder to increase the surface area. At Chernobyl nuclear accident in 1986, Russia eventually stopped the chain reaction in the reactor after dropping nearly 2,000 tons of boron carbide and sand.
Grinding Polishing Lapping Materials
Boron carbide has been used as a coarse abrasive material long before. Due to its high melting point, it is not easy to cast into artifacts, but it can be processed into simple shapes by melting the powder at high temperatures. So it is often used for grinding, lapping, drilling and polishing hard materials such as hard alloy, gems and so on.
Ceramic Coating
Boron carbide can also be used as a ceramic coating for warships and helicopters, which is lightweight and has the ability to resist armor-piercing bullets penetrating the thermal coating to form a monolithic shield.
Boron Carbide Sandblasting Nozzles with Longer Working Life Better Wear-resistance
It can be used to manufacture gun nozzles in the arms industry. Boron carbide, extremely hard and wear-resistant, no reaction with acid-base, high/low temperature resistance, high pressure resistance, crystal system: hexagonal, density: 2.52g/cm3, Mohs hardness: 9.36, microhardness 5400-6300kg/mm2, bending strength ≥400Mpa, melting point: 2450ºC. Because it has the characteristics of wear resistance and high hardness, Boron Carbide Sandblasting Nozzle will gradually replace the known carbide/tungsten steel and silicon carbide, silicon nitride, alumina, zirconia and other materials sandblasting nozzle. Kumthai not only supplies high hardness Boron Carbide Powder, but also offers customized high purity and longer service life Boron Carbide sandblasting Nozzles, welcome to send the drawings for the prices.
Other Applications
Boron carbide is also used in the manufacture of metal borides and in the smelting of sodium boron, boron alloys, special welding and so on.
