Nl46 UHP HP RP Carbon Graphite Electrode for Lf and Electric Arc Furnace Graphite Electrode
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
Nl46 UHP HP RP Carbon Graphite Electrode for Lf and Electric Arc Furnace Graphite Electrode
Graphite electrode is made from the domestic first class petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The Graphite electrodes include: regular power, high power, ultra high power and square electrode. The range of diameters covers from 200mm to 800mm.
Our products own the following characteristics: low electric resistivity, good electrical and thermal conductivity, high oxidation resistance, greater resistance to thermal and mechanical shock, high mechanical strength, high machining accuracy.
Product Advantage
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Specifications for RP, HP, UHP graphite electrodes with nipples:
| RP | HP | UHP |
| Electrode: Bulk Density≥ 1.56g/cm3 Specific Resistivity≤ 8.5μm Bending Strength≥ 10.0MPa Elastic Modulus≤ 9.3GPa Thermal Expansion Coefficient≤ 2.7x10 -6/°C Ash≤ 0.5% Nipple: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 7.0μm Bending Strength≥ 14.0MPa Elastic Modulus≤ 13.7GPa Thermal Expansion Coefficient≤ 2.5 x10 -6/°C Ash≤ 0.5% |
Electrode: Bulk Density≥ 1.65g/cm3 Specific Resistivity≤ 6.5μm Bending Strength≥ 12.0MPa Elastic Modulus≤ 10.0GPa Thermal Expansion Coefficient≤ 2.2x10 -6/°C Ash≤ 0.3% Nipple: Bulk Density≥ 1.74g/cm3 Specific Resistivity≤ 5.5μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 2.0 x10 -6/°C Ash≤ 0.3% |
Electrode: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 5.8μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 1.9x10 -6/°C Ash≤ 0.2% Nipple: Bulk Density≥ 1.76g/cm3 Specific Resistivity≤ 4.5μm Bending Strength≥ 18.0MPa Elastic Modulus≤ 16.0GPa Thermal Expansion Coefficient≤ 1.4 x10 -6/°C Ash≤ 0.2% |
| Actual diameters | Actual lengths | ||||||
| Mm | Mm | MAX | MIN | Rough spot | Length | Tolerance | Shot Ruler size |
| 200 | 8 | 204 | 201 | 198 | 1600 | ±100 | -275 |
| 250 | 10 | 256 | 252 | 248 | 1600 1800 |
||
| 300 | 12 | 307 | 303 | 299 | |||
| 350 | 14 | 357 | 353 | 347 | |||
| 400 | 16 | 409 | 404 | 400 | 1600 1800 2000 |
||
| 450 | 18 | 460 | 455 | 451 | |||
| 500 | 20 | 511 | 506 | 502 | |||
| 600 | 24 | 613 | 607 | 604 | |||
| 780 | 31.2 | 782 | 776 | 774 | 2000 2200 2400 |
±100 | -400 |
| 800 | 32 | 802 | 796 | 794 | |||
| 870 | 34.8 | 872 | 866 | 862 | |||
| 900 | 36 | 902 | 896 | 892 | |||
| 920 | 36.8 | 922 | 916 | 912 | |||
| 960 | 38.4 | 962 | 956 | 952 | |||
| 1020 | 40.8 | 1022 | 1016 | 1012 | 2200 2600 2800 |
||
| 1060 | 42.4 | 1062 | 1056 | 1052 | |||
| 1100 | 44 | 1102 | 1092 | 1092 | |||
| 1146 | 45.8 | 1148 | 1140 | 1138 | |||
| 1197 | 47.9 | 1199 | 1191 | 1189 | |||
| 1250 | 50 | 1252 | 1244 | 1242 | |||
| 1272 | 50.9 | 1274 | 1266 | 1264 | |||
| 1305 | 54.4 | 1307 | 1299 | 1297 | |||
| 1321 | 52.8 | 1323 | 1315 | 1313 | |||
| 1400 | 56 | 1402 | 1394 | 1392 | |||
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.

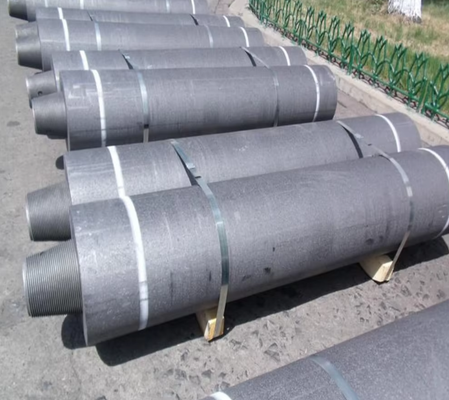

Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
Specification
| Specification | Regular power | High power | Ultra high power | |
| Specific ResistanceμΩ•m(max) | Electrode | 8.5 | 6.5 | 5.5 |
| Nipple | 6.5 | 5.5 | 4.5 | |
| Bulk densityg/cm3(min) | Electrode | 1.54 | 1.63 | 1.68 |
| Nipple | 1.69 | 1.73 | 1.75 | |
| Modulus of rapture Mpa(min) | Electrode | 8.5 | 10.5 | 11.0 |
| Nipple | 15.0 | 16.0 | 20.0 | |
| Yong’s Modulus Gpa(max) | Electrode | 9.3 | 12.0 | 14.0 |
| Nipple | 14.0 | 16.0 | 18.0 | |
| Ash% (max) | Electrode | 0.5 | 0.3 | 0.2 |
| Nipple | 0.5 | 0.3 | 0.3 | |
| CTE(100-600℃)10-6 | Electrode | 2.9 | 2.2 | 1.5 |
| Nipple | 2.8 | 2.0 | 1.4 | |
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple

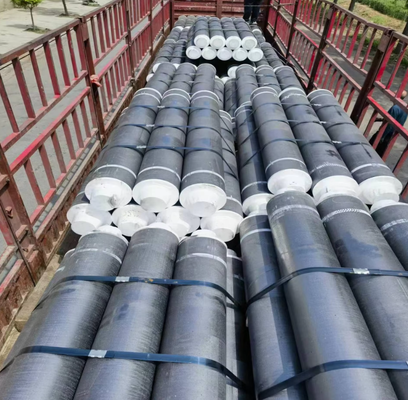

Packing Details:
Wooden Case/Pallets with steel strips or As the customer's requirements
Port:
Tianjin Port, Qingdao Port
Leading Time:
Shipped in 15-30 days after payment
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
