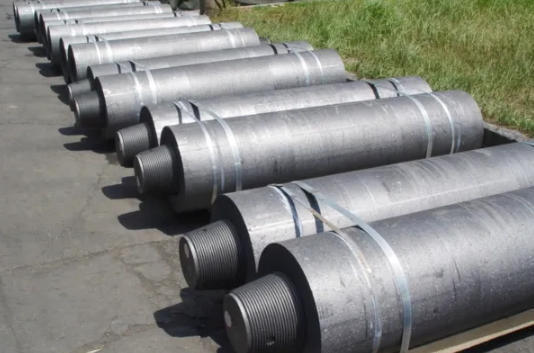

UHP Grade Graphite Electrode with Nipples Graphite Rod
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
UHP Grade Graphite Electrode with Nipples Graphite Rod
Graphite Electrode is made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.after calcining,burdening,kneading,forming,baking and pressure impregnation, graphitization and then precision machined with professional CNC machining.such of the products own characteristics with low resistivity, good electrical conductivity ,low ash, compact structure,good anti oxidation and high mechanical strength, Widely used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry.so it is the best conductive material for electric arc furnace and smelting furnace.
RP/HP/UHP graphite electrodes in diameter 100mm-600mm, we have a complete calcining, crushing, forming, baking, impregnation, graphitization, machining production lines and advanced technology and complete quality test equipment for quality control.
Type: Graphite Electrode
Application: smelting industries , steel -making
Length: 1400-2800mm
Grade: UHP (Ultra High Power)
Resistance (μΩ.m): 5.5
Apparent Density (g/cm3): 1.69
Thermal Expansion: 1.4
Flexural Strength (N/m2): 12
ELASTIC MODULUS: 8.0
ASH: 0.3% Max
Raw Material: Needle Coke,Petroleum Coke
Nipple: 3TPI 4TPI
Style: UHP Ultra High Power Graphite Electrode
Color: Grey Black
Physical and chemical indexes of ordinary power graphite electrode| Nominal Diameter(mm) | ||||||||
| 75--200 | 250--300 | 400--500 | ||||||
| Item | Classify | Unit | Superior product | First grade | Superior product | First grade | Superior product | First grade |
| A | B | A | B | A | B | |||
| electrical resistivity ≯ | electrode | μΩ.m | 8 | 9 | 8 | 9 | 8 | 9 |
| joint | 7.5 | 7.5 | 7.5 | |||||
| breaking strength≯ | electrode | M Pa | 10 | 10 | 8 | |||
| joint | 15 | 15 | 15 | |||||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 | |||
| joint | 14 | 14 | 14 | |||||
| volume density≯ | electrode | g/cm3 | 1.58 | 1.58 | 1.58 | |||
| joint | 1.68 | 1.68 | 1.68 | |||||
| CTE(100-600)≯ | electrode | X10-6/ºC | 2.7 | 2.7 | 2.7 | |||
| joint | 2.5 | 2.5 | 2.5 | |||||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | ||||
| Note: ash and thermal expansion coefficient are reference indexe | ||||||||
Physicochemical index of high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | ||
| 200-400 | 450-500 | 550-600 | |||
| electrical resistivity≯ | electrode | μΩ.m | 7 | 7 | 7 |
| joint | 6 | 6 | 5.8 | ||
| breaking strength≯ | electrode | M Pa | 10.5 | 10 | 10 |
| joint | 14 | 14 | 16 | ||
| elasticity modulus≯ | electrode | GP a | 12 | 12 | 12 |
| joint | 16 | 16 | 16 | ||
| volume density≯ | electrode | g/cm3 | 1.62 | 1.62 | 1.62 |
| joint | 1.72 | 1.72 | 1.72 | ||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 2.4 | 2.4 | 2.4 |
| joint | 2.3 | 2.2 | 2.2 | ||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | |
| Note: ash and thermal expansion coefficient are reference indexes | |||||
Physical and chemical indexes of super high power graphite electrode
| Item | Classify | Unit | Nominal Diameter(mm) | |||
| 300-400 | 450-500 | 550-700 | ||||
| electrical resistivity≯ | electrode | μΩ.m | 6.2 | 6.2 | 6.3 | |
| joint | 5 | 5 | 4.5 | |||
| breaking strength≯ | electrode | M Pa | 10.5 | 10.5 | 11 | |
| joint | 18 | 18 | 20 | |||
| elasticity modulus≯ | electrode | G Pa | 14 | 14 | 14 | |
| joint | 18 | 18 | 22 | |||
| volume density≯ | electrode | g/cm3 | 1.66 | 1.66 | 1.66 | |
| joint | 1.75 | 1.75 | 1.75 | |||
| CTE(100C-600C)≯ | electrode | X10-6/ºC | 1.5 | 1.5 | 1.4 | |
| joint | 1.4 | 1.4 | 1.2 | |||
| Ash≯ | % | 0.3 | 0.3 | 0.3 | ||
| Note: ash and thermal expansion coefficient are reference indexes | ||||||
Advantages of Graphite electrode:
1. Reduce graphite electrodes lateral oxidation rate.
2. Lessen graphite electrodes consumption rate by 15%~20%.
3. Improve graphite electrodes cost efficiency.
4. It is a more cost-effective solution through reducing graphite electrodes purchasing cost by 10%~15%.
5. It is a production efficiency improving solution through reducing risk of graphite electrodes breakage and falling down.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.

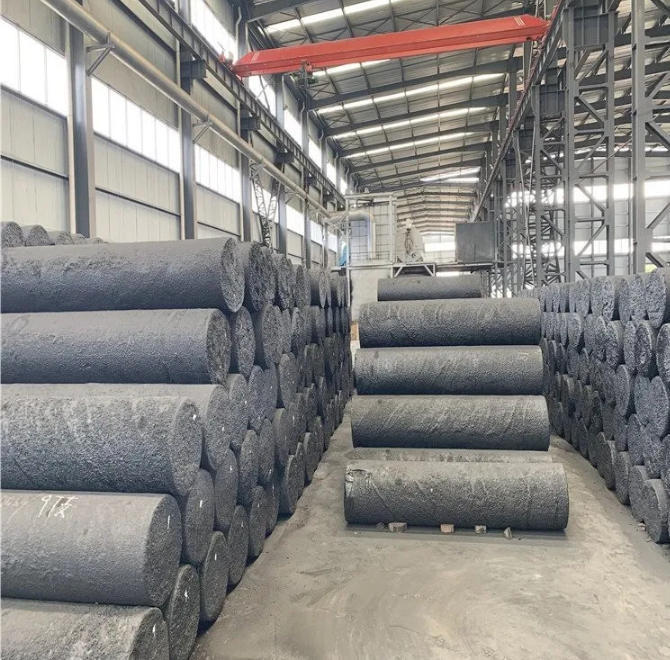

Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
Specification
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Packing Details:
Wooden Case/Pallets with steel strips or As the customer's requirements
Port:
Tianjin Port, Qingdao Port
Leading Time:
Shipped in 15-30 days after payment
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
