UHP600 Carbon Graphite Electrode for Arc Furnace
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25tons |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
Product Details
| Grade | UHP (Ultra High Power),HP (High Power),RP (Regular Power) | Thermal Expansion | 1.5 - 2.8 X10-6 / (100-600 ) |
|---|---|---|---|
| Apparent Density (g/cm³ ) | 1.6-1.9 | Resistance (μω.m) | 4 - 9 Micro Ohm.m |
| Length | 1600~2400mm |
You can tick the products you need and communicate with us in the message board.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Product Description
UHP600 Carbon Graphite Electrode for Arc Furnace
The electrodes carry the electricity that heats electric arc furnaces, the vast majority steel furnaces. They are made from petroleum coke after it is mixed with petroleum pitch, extruded and shaped, then baked to sinter it, and then graphitized by heating it above the temperature (3000 °C) that converts carbon to graphite. They can vary in size up to 11 ft. long and 30 in. in diameter.
Usage: An increasing proportion of global steel is made using electric arc furnaces, and the electric arc furnace itself is getting more efficient and making more steel per tonne of electrode
Graphite Electrodes
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
Our graphite electrodes characteristics:
*High density, high temperature resistance, high mechanical strength and strong chemical stability
*Low electrical resistivity combined with superb electrical and thermal conductivity
*High mechanical strength under high temperatures, ensuring robust performance
*High resistance to thermal shock and mechanical vibration, providing stability
*Reduced ash content, ensuring enhanced quality and purity
*According to insightful customer feedback, our electrodes used in EAF/LF delivered lower graphite electrode consumption rates per ton of steel.
|
HP (High Power Grade Graphite Electrodes)
|
||||||
|
ITEM
|
UNIT
|
(M M)NOMINAL DIAMETER
|
||||
|
200-300
|
350-400
|
450-500
|
550-600
|
|||
|
BULK DENSITY
|
ELECTRODE
|
G/CM3
|
≥ 1.65
|
≥ 1.65
|
≥ 1.65
|
≥ 1.65
|
|
NIPPLE
|
≥ 1.75
|
≥ 1.75
|
≥ 1.75
|
≥ 1.75
|
||
|
RESISTIVITY
|
ELECTRODE
|
μΩM
|
≤6.5
|
≤6.5
|
≤6.5
|
≤6.5
|
|
NIPPLE
|
≤4.0
|
≤4.0
|
≤4.0
|
≤4.0
|
||
|
BENDING STRENGTH
|
ELECTRODE
|
MPA
|
≥12.0
|
≥12.0
|
≥12.0
|
≥12.0
|
|
NIPPLE
|
≥16.0
|
≥16.0
|
≥16.0
|
≥16.0
|
||
|
ELASTIC MODULUS
|
ELECTRODE
|
GPA
|
≤10.0
|
≤10.0
|
≤10.0
|
≤10.0
|
|
NIPPLE
|
≤14.0
|
≤14.0
|
≤14.0
|
≤14.0
|
||
|
C.T.E.
(100-600/ºC) |
ELECTRODE
|
10-6/ºC
|
≤ 2.2
|
≤ 2.2
|
≤ 2.2
|
≤ 2.2
|
|
NIPPLE
|
≤ 2.2
|
≤ 2.2
|
≤ 2.2
|
≤ 2.2
|
||
|
ASH
|
|
%
|
≤0.3
|
≤0.25
|
≤0.25
|
≤0.25
|
| Grade | Position | Specific Resistivity | Bulk density | Bending Strength | C.T.E | Elastic Modulus | Ash |
| RP | Body | ≤8.5 μΩ•m | ≥1.54g/cc | ≥8.5 Mpa | ≤2.4 x10-6/ºC | ≤9.3 Gpa | ≤0.4% |
| Nipple | ≤5.2 μΩ•m | ≥1.72g/cc | ≥17.0 Mpa | ≤2.3 x10-6/ºC | ≤14.0 Gpa | ≤0.4% | |
| HP | Body | ≤6.8 μΩ•m | ≥1.65g/cc | ≥11.0 Mpa | ≤2.3 x10-6/ºC | ≤12.0 Gpa | ≤0.3% |
| Nipple | ≤5.0 μΩ•m | ≥1.74g/cc | ≥18.0 Mpa | ≤2.1 x10-6/ºC | ≤16.0 Gpa | ≤0.2% | |
| UHP | Body | ≤6.0 μΩ•m | ≥1.66g/cc | ≥12.0 Mpa | ≤1.4 x10-6/ºC | ≤14.0 Gpa | ≤0.2% |
| Nipple | ≤4.0 μΩ•m | ≥1.77g/cc | ≥21.0 Mpa | ≤1.3 x10-6/ºC | ≤18.0 Gpa | ≤0.2% |
Advantages of Graphite electrode:
1. Reduce graphite electrodes lateral oxidation rate.
2. Lessen graphite electrodes consumption rate by 15%~20%.
3. Improve graphite electrodes cost efficiency.
4. It is a more cost-effective solution through reducing graphite electrodes purchasing cost by 10%~15%.
5. It is a production efficiency improving solution through reducing risk of graphite electrodes breakage and falling down.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
Specification
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple

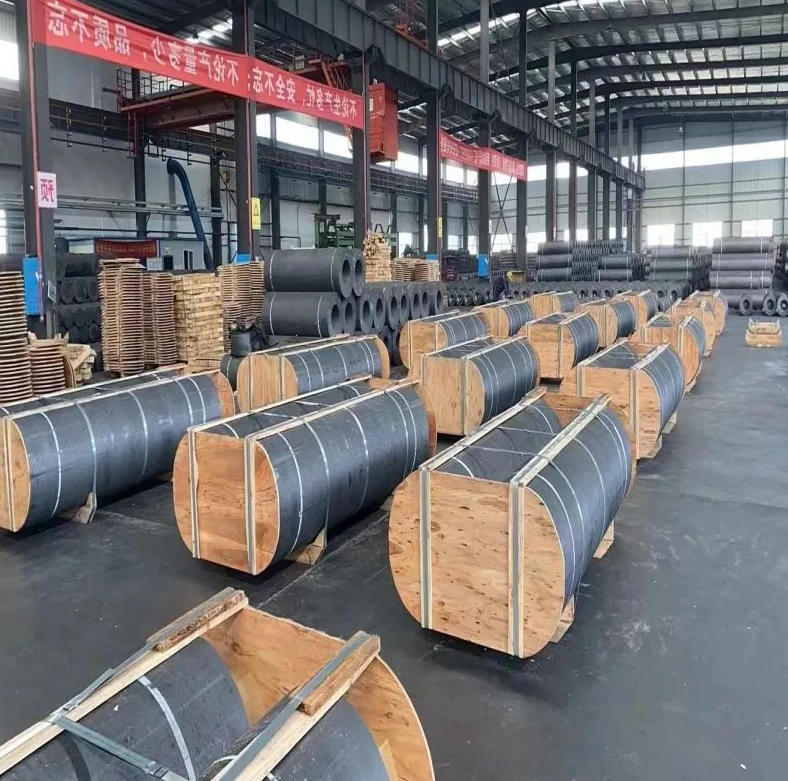

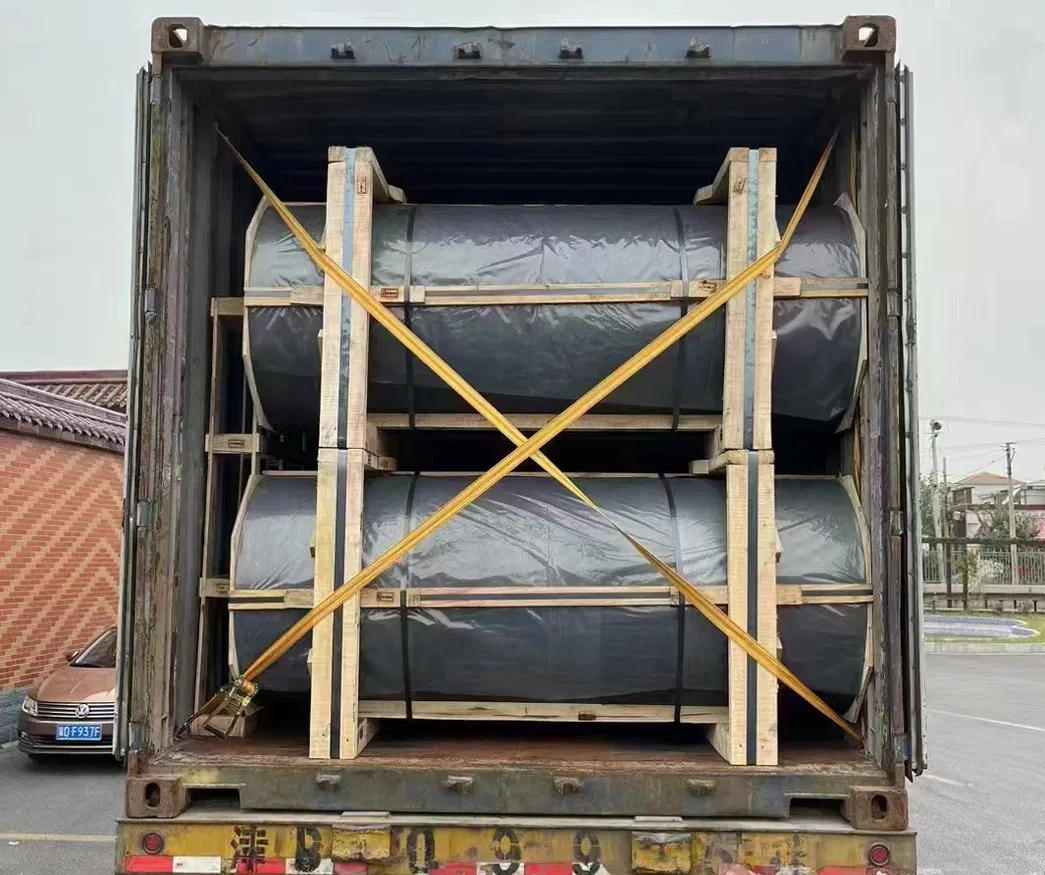

Packing Details:
Wooden Case/Pallets with steel strips or As the customer's requirements
Port:
Tianjin Port, Qingdao Port
Leading Time:
Shipped in 15-30 days after payment
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
