Fine Grain Graphite Rods, graphite electrode rod ,isostatic graphite rods
| Place of Origin | China |
|---|---|
| Brand Name | Haisen |
| Certification | QA/QC |
| Model Number | graphite electrode |
| Minimum Order Quantity | 25 |
| Price | USD1000/MT |
| Packaging Details | wooden pallet |
| Delivery Time | 10-15days |
| Payment Terms | TT/LC |
| Supply Ability | 3000 Metric Ton/Metric Tons per Month |
Product Details
Product Description
Fine Grain Graphite Rods, graphite electrode rod ,isostatic graphite rods
Product Description
Graphite rod:
1. Low specific resistivity.
2. Fine grain sizes.
3. With good thermal.
4.electrical and mechanical properties.
Fine Grain Graphite Rods
1. We are specializes/expertised in producing,processing,supplying all kinds of full series of graphite rods: extruded,molded,isostatic graphite rods are all available with us.
2. Material used high quality petroleum coke, needle coke.
3.Grade:RP,HP,SHP,UHP
4. Dia. 50mm~600mm; Length:1000~2500mm.
5. Graphite Rod Carbon Rod Properties:
a. Fine grain
b.With high bulk density and good mechanical strength
c. Reliable resistance to heat,thermal, and chemicals
d. Anti-shock superior performance
6. Applications
Electrodes/Vacuum furnace/Heaters/metal smelting or metal sintering

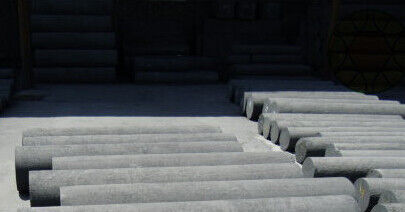

7. Some Photos Extruded Graphite Rods
We can supply large quantity of graphite electrode and reclaimed electrode and the specification as follows:
Graphite electrode:
diameter:55-56 length:700Mm or 1400Mm
diameter:122 length:1500Mm
diameter:150 length:1800Mm
diameter:200 length:1800Mm
diameter:250 length:1800Mm
diameter:300 length:1800Mm
diameter:350 length:1800Mm
Reclaimed graphite electrode:
diameter:550-1500 Thickness:55Mm
diameter:55-350 length:1800Mm
|
Physical Properties |
RP |
HP |
UHP |
|
|
Electrical Resistance μΩ.m |
Electrode |
7.0-8.8 |
5.8-7.0 |
4.8-6.0 |
|
|
Nipple |
4.8-6.4 |
4.0-5.5 |
3.3-4.5 |
|
Bending Strength Mpa |
Electrode |
6.8-12.0 |
9.0-15.0 |
9.0-15.0 |
|
|
Nipple |
16.0-12.0 |
16.0-24.0 |
20.0-28.0 |
|
Elastic Modulus Gpa |
Electrode |
7.0-12.0 |
9.0-14.0 |
9.0-13 |
|
|
Nipple |
10.0-20.0 |
12.0-20.0 |
12.0-20.0 |
|
Bulk Density g/cm3 |
Electrode |
1.55-1.65 |
1.62-1.73 |
1.65-1.75 |
|
|
Nipple |
1.71-1.76 |
1.74-1.8 |
1.75-1.82 |
|
C.T.E ×10-6/°C |
Electrode |
2.0-2.6 |
1.6-2 |
1.1-1.5 |
|
|
Nipple |
1.8-2.4 |
1.0-1.8 |
0.8-1.3 |
|
Ash < % |
Electrode |
0.5 |
0.3 |
0.3 |
