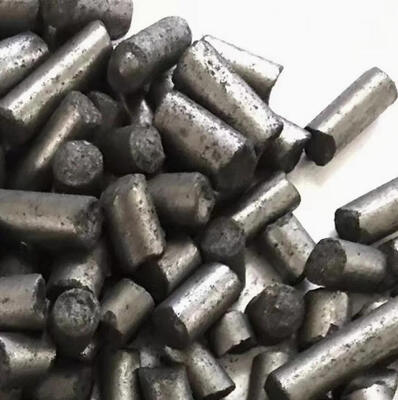

Columnar Graphite Carburizer Recarburizer Suitable for Casting Industry
| Place of Origin | China |
|---|---|
| Brand Name | Chaoyo |
| Certification | sgs |
| Model Number | graphite recarburizer |
| Minimum Order Quantity | 10tons |
| Packaging Details | bulk |
| Delivery Time | 15-18days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100tons |
Product Details
| Fixed Carbon | 98.5% | Expansion Ratio | >150ml/G |
|---|---|---|---|
| Ash | 0.7%Max | Moisture | 0.8%Max |
Product Description
Columnar Graphite Carburizer Recarburizer Suitable for Casting Industry
Petroleum coke is a product produced after crude oil is distilled to separate light and heavy oil, and then the heavy oil is transformed through a thermal cracking process. From the appearance, the coke is a black block (or particle) with irregular shape and different sizes and granular, it has a metallic luster, and the coke particles have a porous structure. Petroleum coke is a black or dark gray hard solid petroleum product that is porous. It is a carbon body composed of granular, columnar, or needle-shaped crystals of tiny graphite. Petroleum coke is composed of hydrocarbons. The main element is carbon, with a carbon content of 90-97% and hydrogen 1.5-8%. It also contains nitrogen, chlorine, sulfur and heavy metals. Petroleum coke is cheap and has high carbon content.
Introduction to calcined petroleum coke CPC and graphitized petroleum coke GPC:
Calcined coke is mainly used to produce graphite electrodes, carbon paste products, diamond sand, food-grade phosphorus industry, metallurgical industry, calcium carbide, etc. Among them, graphite electrodes are the most widely used. Petroleum coke calcination is a primary processing of raw materials and is a necessary process for producing graphite electrodes.
Graphitized petroleum coke is to convert petroleum coke into a hexagonal layered crystalline carbon crystal at a high temperature of about 3000 degrees in a graphitization furnace, that is, petroleum coke becomes graphite. This process is called graphitization. Petroleum coke processed through the graphitization process is called graphitized petroleum coke.
Petroleum coke is composed of hydrocarbons. The main element is carbon, with a carbon content of 90-97% and hydrogen 1.5-8%. It also contains nitrogen, chlorine, sulfur and heavy metals.
CPC(Calcined Petroleum Coke)
| Product Name | CPC(Calcined Petroleum Coke) | Produce Method | Delayed coking |
| Size | 1-3mm, 1-5mm, 1-10mm, 1-20mm, etc | ||
| Fixed Carbon | ≥98% | Sulfur | ≤0.5% |
| Ash | ≤0.5% | Water | ≤0.5% |
| Modes of Packing | Packed in 1 mt big bags | Customized | Available |
GPC (Graphitized Petroleum Coke)
| Item | GPC (Graphitized Petroleum Coke) | ||
| Fixed Carbon | >99% | Ash Content | <0.5% |
| V.m | <0.5% | Sulphur Content | <0.05% |
| Nitrogen Content | <300 | Raw Material | Calcined Petroleum Coke |
| Shape | Granular | Size | 0-1mm,1-5mm,3-8mm,8-26mm |
Application
Production of graphite electrodes, production of activated carbon, electrodes for special batteries for mobile phones and laptop computers, used as fuel for CFB boilers and cement industries, carbon paste products, diamond sand, food grade phosphorus industry, metallurgical industry, calcium carbide, etc.
1.Steel Foundry:carburant/graphite electrode/refractory material
2.Industry Field:brake pad/seal ring/friction plate/heat exchanger/lubricity
3.Battery Production: alkaline battery cathode/lithium ion battery cathode
4.Metallurgy: casting for glass production/graphite crucible/ anodes for aluminium smelting industry
5.Others: glass sheet/pencil lead/clay bricks/conductive coating
Advantage of CPC Calcined Petroleum Coke
Sieving various sizes of calcined coke with sizes of 1-3mm, 1-5mm, 1-10mm, 1-20mm, etc.;
Custom-made according to the needs to sievie various types of sponge calcined coke;
Produce low-sulfur and medium sulfur calcined petroleum coke with large inventory;
The monthly supply is about 5,000 tons with fast delivery.
High carbon content, low ash, sulfur, phosphorus, high mechanical strength.
Advantage of GPC Graphitized Petroleum Coke
Our graphitized petroleum coke is made of calcined petroleum coke as raw material, then going through fully graphitization of the continuous graphitization process under the high temperature of minimum 2600 degree . Afterwards, through crushing, screening and classification, we supply our users with the different particle size between 0-50mm at the customers' request. Acting as the inoculant and carburizer, it's widely used in the special steel smelting and precision casting process, especially meeting the requirement of high quality product and strict control of sulfur content in the ductile iron and grey iron casting industry. lt's also used as reducer agent in the nuclear reactor, the absorbent of heavy metal in the waste water treatment system and the raw material of graphite cathode in the aluminum electrolysis cell.
1.Steel Foundry:carburant/graphite electrode/refractory material
2.Industry Field:brake pad/seal ring/friction plate/heat exchanger/lubricity
3.Battery Production: alkaline battery cathode/lithium ion battery cathode
4.Metallurgy: casting for glass production/graphite crucible/ anodes for aluminium smelting industry
5.Others: glass sheet/pencil lead/clay bricks/conductive coating
Advantage of CPC Calcined Petroleum Coke
Sieving various sizes of calcined coke with sizes of 1-3mm, 1-5mm, 1-10mm, 1-20mm, etc.;
Custom-made according to the needs to sievie various types of sponge calcined coke;
Produce low-sulfur and medium sulfur calcined petroleum coke with large inventory;
The monthly supply is about 5,000 tons with fast delivery.
High carbon content, low ash, sulfur, phosphorus, high mechanical strength.
Advantage of GPC Graphitized Petroleum Coke
Our graphitized petroleum coke is made of calcined petroleum coke as raw material, then going through fully graphitization of the continuous graphitization process under the high temperature of minimum 2600 degree . Afterwards, through crushing, screening and classification, we supply our users with the different particle size between 0-50mm at the customers' request. Acting as the inoculant and carburizer, it's widely used in the special steel smelting and precision casting process, especially meeting the requirement of high quality product and strict control of sulfur content in the ductile iron and grey iron casting industry. lt's also used as reducer agent in the nuclear reactor, the absorbent of heavy metal in the waste water treatment system and the raw material of graphite cathode in the aluminum electrolysis cell.
Packing & Delivery
1. 25kg per bag or 1000kg per bag,customer's logo can be printed on the bag.
2. As customer's requirement.
2. As customer's requirement.
Difference of CPC Calcined Petroleum Coke and GPC Graphitized Petroleum Coke
| Appearance | In appearance, the calcined coke has an irregular shape, while the graphitized petroleum coke has a darker and brighter color. |
| Application | Graphitized petroleum coke and calcined petroleum coke are used in steel smelting and casting manufacturing industries, but graphitized petroleum coke has the advantages of low sulfur, low nitrogen and high carbon compared with calcined coke, and the metal luster is stronger. |
| Manufacturing technique | Graphitized petroleum coke is produced when the internal structure changes at a high temperature of about 3000 degrees, and the temperature of calcined coke is about 1300 degrees. |
The difference between CPC Calcined Petroleum Coke Recarburizer and GPC Graphitized Petroleum Coke Carburant
| Raw Materials | petroleum coke |
| Smelting Environment | Graphitized carburizer is produced in graphitized smelting furnace at a temperature of about 3000 ° C |
| The post-calcined petroleum coke carburizer is produced at a temperature of more than 1500 ºC in the smelting furnace after forging | |
Fixed Carbon Content |
Graphitized carburizer fixed carbon is generally about 98%, the highest can reach 99% |
| The fixed carbon of calcined petroleum coke carburizer is generally about 98.5%. | |
| Sulfur Content | The sulfur content of graphitization carburizer is generally between 0.03-0.06%, and generally 0.05% is more. The absorption rate is generally between 90% and 95%. |
| The sulfur content of calcined petroleum coke carburizer is generally about 0.5%. The absorption rate is generally between 80% and 90%. | |
Smelting Time |
The smelting environment of graphitized carburizer is longer than that of calcined petroleum coke carburizer |
